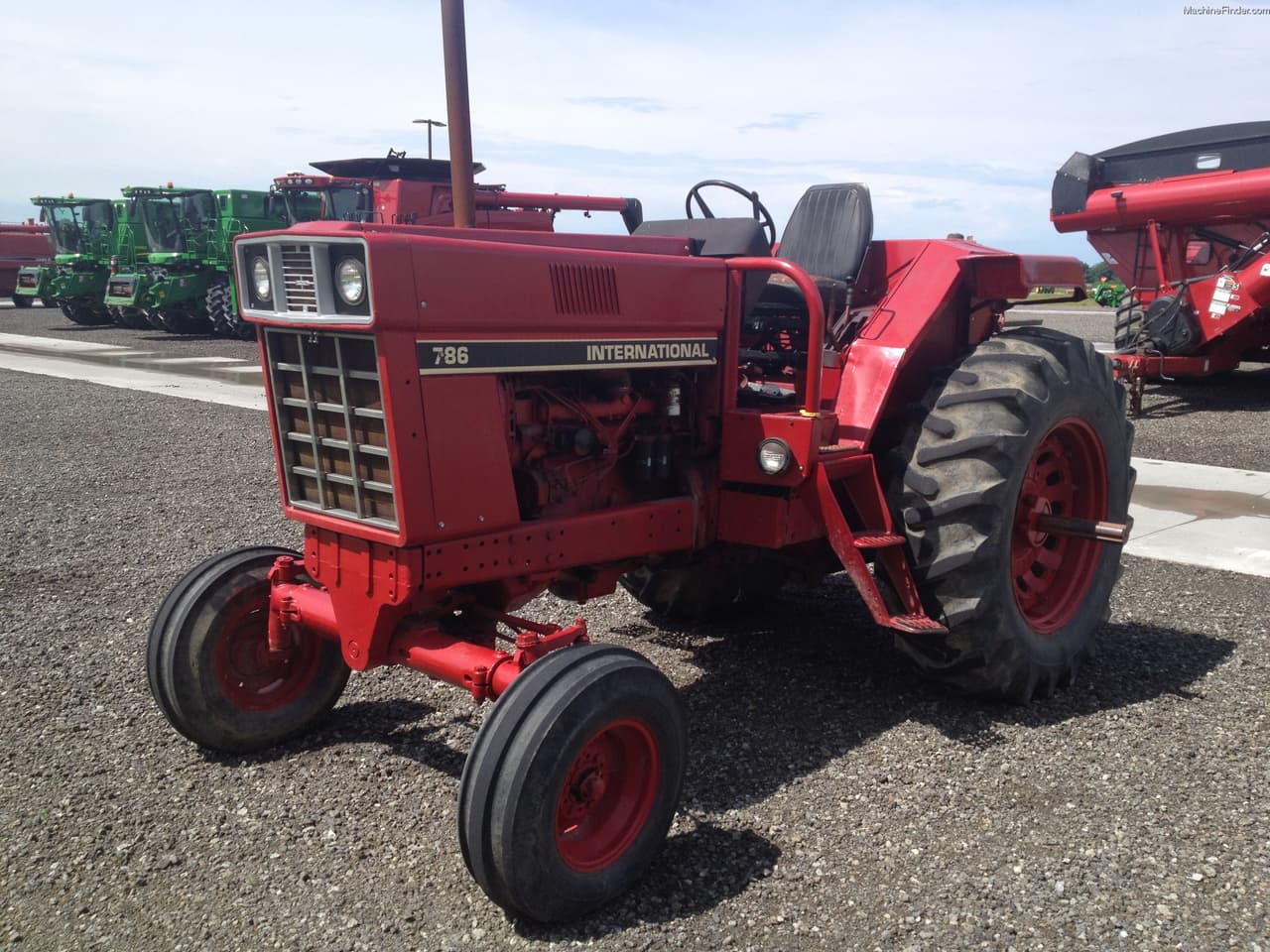

International Harvester 786

Last Updated: June 2024

Overview

The International Harvester 786 is a row-crop tractor manufactured by International Harvester in Rock Island, Illinois, USA and in Geelong, Australia between 1980 and 1981. It belongs to the 86 series and is designed for a variety of farm operations typical to a row-crop situation. The tractor is powered by a 5.9 L six-cylinder liquid-cooled diesel engine, featuring an inline configuration. It's equipped with a ‘Torque Amplifier’ transmission providing 16 forward and 8 reverse gears. It has a power assist steering system and hydraulic disc brakes to enhance the handling and safety of the tractor. The 786 is capable of 540/1000 rpm PTO speeds and is available with either an open operator station or an optional cab. The tractor is well-regarded for its robust construction and versatility in the field.
Show more...

Key Specifications

Category: Row Crop

Transmission: Torque Amplifier

Drive Type: 2WD

Operating Weight: 11590

Fuel Type: Diesel

International Harvester 786 vs. Similar Tractors

Operating Weight
Average
Greater than 44% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D358
Cooling Type
Liquid-Cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural Aspiration
Cylinders
6
Displacement (ci)
358
Bore (in)
3.875
Stroke (in)
5.0625
Rated RPM
2400
Power Output (hp)
-

Transmission

Type
Torque Amplifier
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
165
Width (in)
102
Height (in)
112
Operating Weight (lb)
11590

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power Assist
Coolant Capacity (qts)
24
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1981
Hitch Type
-
Hitch Category
II/I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open or Cab (optional)
Starter Type
Electric
Brake Type
Hydraulic Disc
Hydraulic System Type
Open Center
