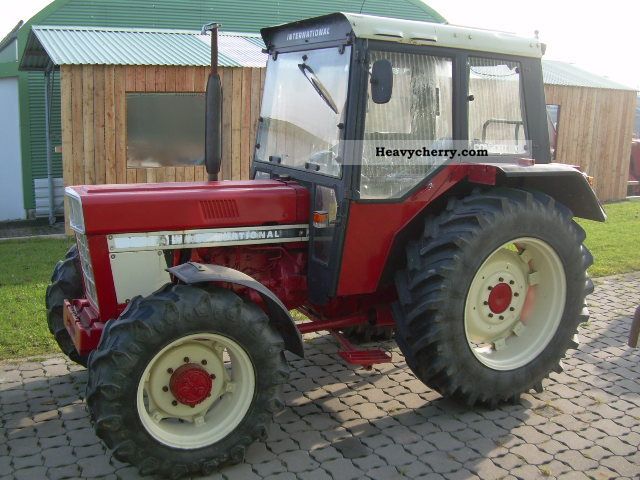

International Harvester 743

Last Updated: June 2024

Overview

The International Harvester 743 is a utility tractor that comes with a two-wheel drive chassis. It has a wheelbase of 87.80 inches, providing stability for various tasks. Under the hood, the tractor is powered by an International Harvester D-329 diesel engine, which is liquid-cooled and includes 4 cylinders with a displacement of 238.65 cubic inches, capable of generating 67 horsepower. It has a bore of 3.875 inches and a stroke of 5.06 inches, with the engine rated at 2300 RPM. The International Harvester 743 is equipped with a transmission that offers 8 forward and 4 reverse gears, although the transmission type is not specified. The tractor's operating weight ranges from 6349 pounds with a 2WD and ROPS configuration to 6867 pounds with a 2WD cab configuration. The International Harvester 743 has dimensions of 148.82 inches in length and 103.15 inches in height.
Show more...

Key Specifications

Category: Utility

Power Output: 67

Drive Type: 2WD

Operating Weight: 6349 (2WD ROPS) / 6867 (2WD Cab)

Fuel Type: Diesel

Image Gallery

International Harvester 743 Tractor International Harvester 743 Tractor International Harvester 743 Tractor International Harvester 743 Tractor International Harvester 743 Tractor International Harvester 743 Tractor

International Harvester 743 vs. Similar Tractors

Power Output
Average
Greater than 62% of similar tractors.
Operating Weight
Excellent
Greater than 97% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-329
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
238.65
Bore (in)
3.875
Stroke (in)
5.06
Rated RPM
2300
Power Output (hp)
67

Transmission

Type
-
Forward Gears
8
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
148.82
Width (in)
-
Height (in)
103.15
Operating Weight (lb)
6349 (2WD ROPS) / 6867 (2WD Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
