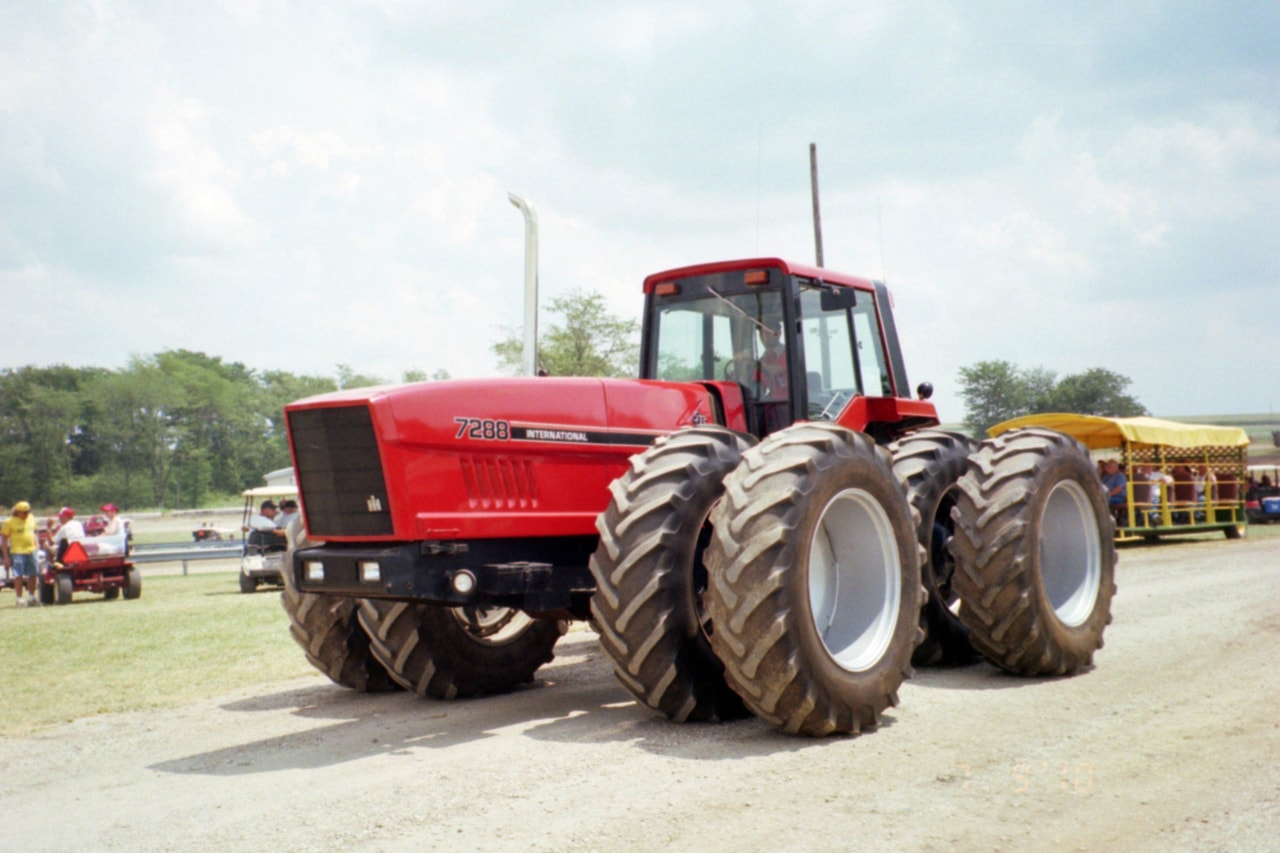

International Harvester 7288

Last Updated: June 2024

Overview

The International Harvester 7288 is a tractor that comes equipped with a robust DTI-466C engine, capable of 210 horsepower. The turbocharged diesel engine has an intercooling system and is liquid-cooled, ensuring efficient operation over extended periods. With an engine displacement of 466 cubic inches and a rated RPM of 2400, the tractor offers substantial power for demanding farm tasks. The tractor's transmission system is the Tri-Six partial power shift type, with 18 forward and 6 reverse gears, providing flexibility and control. The dimensions showcase its significant presence, occupying a length of 239.1 inches, a width of 112 inches, and a height of 128.9 inches, all while maintaining a stable wheelbase of 115.5 inches. It operates with standard agricultural 20.8-38 tires which are common in the industry for their durability and grip. This tractor, with an operating weight of 19,750 pounds, is designed to handle a range of agricultural tasks with ease.
Show more...

Key Specifications

Power Output: 210

Transmission: Partial Power Shift

Operating Weight: 19750

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
International Harvester
Model
DTI-466C
Cooling Type
Liquid-Cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Intercooled Turbocharged
Cylinders
6
Displacement (ci)
466
Bore (in)
4.3
Stroke (in)
5.35
Rated RPM
2400
Power Output (hp)
210

Transmission

Type
Partial Power Shift
Forward Gears
18
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
239.1
Width (in)
112
Height (in)
128.9
Operating Weight (lb)
19750

Power Take-Off (PTO)

PTO Type
1000 rpm
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
36
Front Tire Diameter (in)
38
Front Tire Width (in)
20.8
Rear Tire Diameter (in)
38
Rear Tire Width (in)
20.8
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
III/II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
