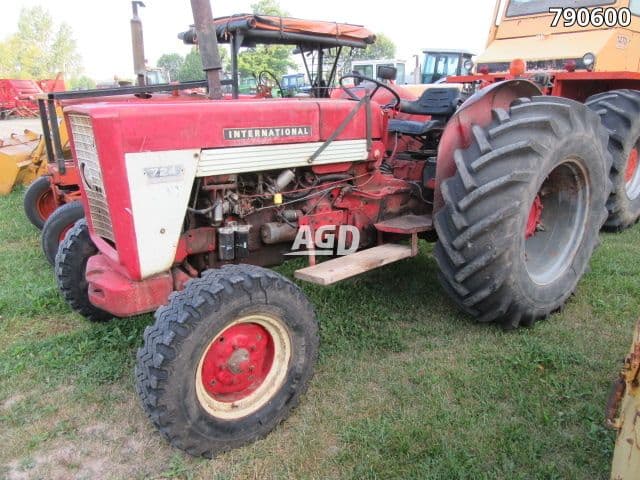

International Harvester 724

Last Updated: June 2024

Overview

The International Harvester 724 is a utility tractor that was known for its reliable performance in farm operations. The tractor features a 4-cylinder International D-239 engine with a displacement of 238.65 cubic inches and a rated power output of 67 horsepower. It operates at a maximum of 2200 RPM and has a torque rating of 165 lb-ft at 1600 RPM. This model comes with a manual steering system, and the transmission is partially synchronized, offering 12 forward and 4 reverse gears. The 724 model flaunts a 4x2 2WD chassis and has a weight range between 6262 and 6626 pounds depending on the setup. The wheelbase measures at 83.5 inches, which contributes to its stable ride and handling. The tractor does not include data on the operator station type, hydraulic system, braking system, PTO specifics, or starter type. Overall, the International Harvester 724 tractor is built to serve the needs of utility-focused tasks, offering considerable power and maneuverability for various agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 67

Transmission: Partially synchronized / Partial power shift

Drive Type: 2WD

Operating Weight: 6262 (2WD variant)

Fuel Type: Diesel

International Harvester 724 vs. Similar Tractors

Power Output
Average
Greater than 62% of similar tractors.
Operating Weight
Above Average
Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-239
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
238.65
Bore (in)
3.875
Stroke (in)
5.06
Rated RPM
2200
Power Output (hp)
67

Transmission

Type
Partially synchronized / Partial power shift
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
131.6
Width (in)
71.5
Height (in)
62
Operating Weight (lb)
6262 (2WD variant)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard tires (ag)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
