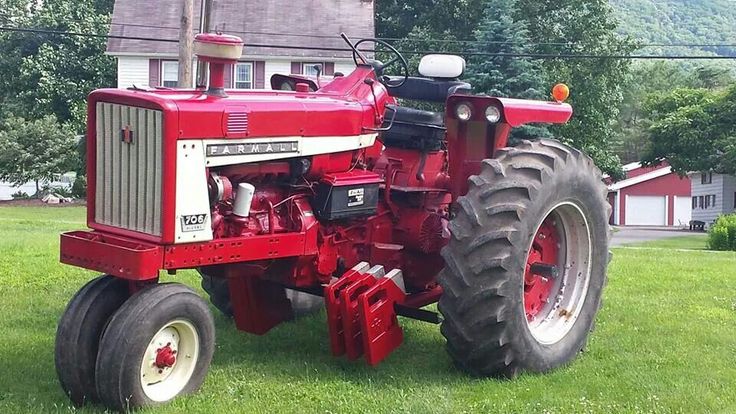

International Harvester 706

Last Updated: June 2024

Overview

The International Harvester 706 was a widely-used utility tractor during its production years, demonstrating versatility in agricultural tasks. Available in both two-wheel and four-wheel drive models, it catered to various farmer needs and was compatible with a range of implements. The tractor could be fitted with a couple of different diesel engines, the D282 and D310, or gasoline/LP-gas engines, the C263 and C291, all of which were inline six-cylinder engines boasting robust performance for the period. It featured a hydrostatic power steering system, which eased the burden of maneuvering in the field. The available hydraulic disc brakes provided reliable stopping power for the tractor's substantial weight. The 706 model offered the choice between an open operator station or an optional cab, preparing it for a variety of weather conditions. International Harvester’s reputation for durability and performance was well embodied by the 706, solidifying its place in the history of farming equipment.
Show more...

Key Specifications

Category: Utility

Transmission: Sliding gear with dry disc clutch or Torque Amplifier

Drive Type: 2WD or 4WD

Operating Weight: 8100 to 9160

Fuel Type: Diesel, Gasoline, LP-gas

International Harvester 706 vs. Similar Tractors

Operating Weight
Excellent
Greater than 92% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D282, D310, C263, C291
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel, Gasoline, LP-gas
Induction Type
Naturally aspirated
Cylinders
6
Displacement (ci)
282, 310, 263, 291 (depending on engine model)
Bore (in)
3.6875 (D282), 3.875 (D310), 3.5625 (C263), 3.75 (C291)
Stroke (in)
4.3906 (D282), 4.375 (D310), 4.3906 (C263), 4.39 (C291)
Rated RPM
2300
Power Output (hp)
-

Transmission

Type
Sliding gear with dry disc clutch or Torque Amplifier
Forward Gears
8 or 16 (with Torque Amplifier)
Reverse Gears
4 or 8 (with Torque Amplifier)
Total Gears
-

Dimensions

Length (in)
149 (2WD)
Width (in)
80 (min)
Height (in)
80 (2WD, steering wheel)
Operating Weight (lb)
8100 to 9160

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
540 or 1000 (optional)
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 or 4x4 FWAD (optional)
Drive Type
2WD or 4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
21.5 (D282), 20.3 (gas C263)
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
IH Fast Hitch
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open operator station or Cab (optional)
Starter Type
Electric
Brake Type
Hydraulic disc
Hydraulic System Type
Open center
