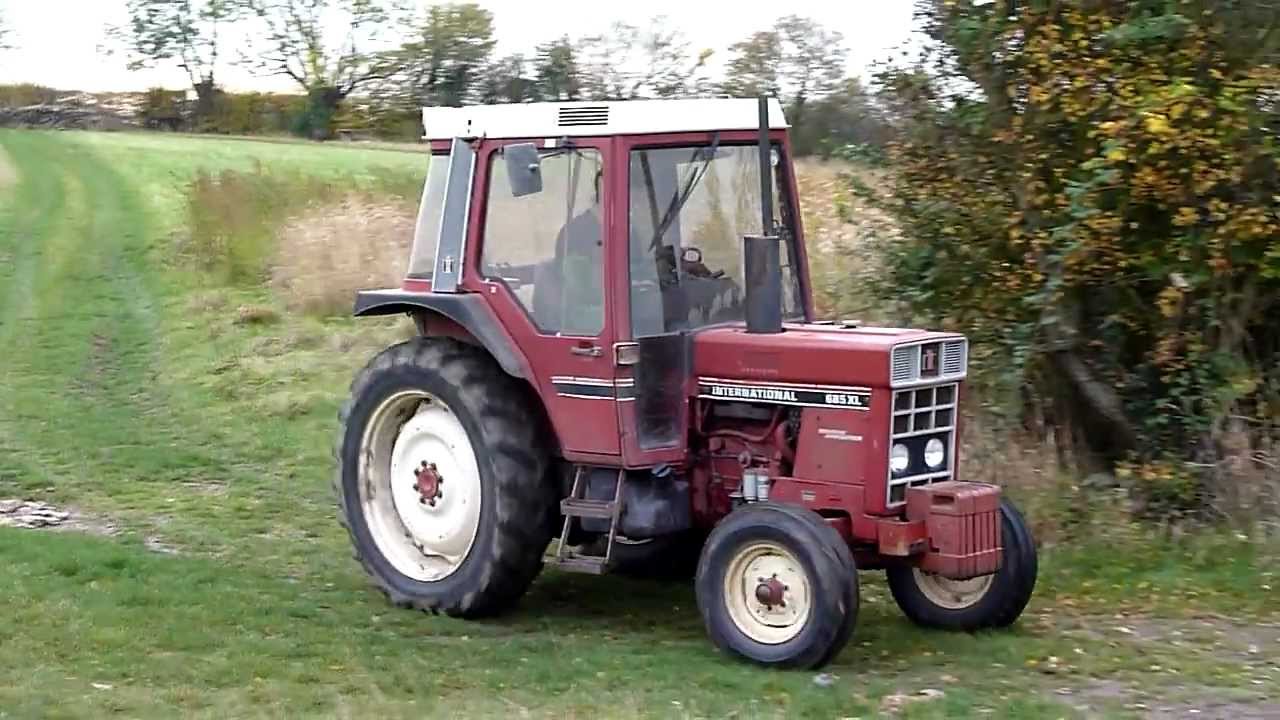

International Harvester 685

Last Updated: September 2024

Overview

The International Harvester 685 is a utility tractor built for farmers who need a strong and versatile machine. It has a 2WD drive system and a 4x2 chassis, making it good for many farm tasks. The tractor's engine is made by International Harvester and has 4 cylinders. It runs on diesel fuel and can produce 71.8 hp, which is above average power for tractors in its class. The engine size is 239 cubic inches, which is also above average.

This tractor has a special transmission with 16 forward gears and 8 reverse gears, giving the driver lots of options for different jobs. It has big tires, with 10.00-16 in the front and 16.9-34 in the back, perfect for farm work. The 685 model is quite heavy at 6,703 pounds, which helps it handle tough jobs. It has a three-point hitch at the back for attaching tools, and two PTO speeds (540 and 1000 rpm) for running different equipment. Some extra features include a torque amplifier and a 12-volt electrical system, making it a well-equipped tractor for its time.
Show more...

Key Specifications

Category: Utility

Power Output: 72 hp (53.5 kW)

Transmission: Synchromesh and Two-Speed Power Shift

Drive Type: 2WD

Operating Weight: 6703 lb (3040 kg)

Fuel Type: Diesel

International Harvester 685 vs. Similar Tractors

Power Output

The Power Output for the International Harvester 685 is Average. It is greater than 66% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 3.2K+ tractors in our database)

Operating Weight

The Operating Weight for the International Harvester 685 is Average. It is greater than 67% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 3.1K+ tractors in our database)

Engine Displacement

The Engine Displacement for the International Harvester 685 is Average. It is greater than 69% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the International Harvester 685 is Average. It is greater than 42% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-239
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement
239 ci (3.9 L)
Bore
3.88 in (98.4 mm)
Stroke
5.06 in (128.5 mm)
Rated RPM
2300
Power Output
72 hp (53.5 kW)

Transmission

Type
Synchromesh and Two-Speed Power Shift
Forward Gears
16
Reverse Gears
8
Total Gears
24

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
