International Harvester 6788

Last Updated: September 2024

Overview

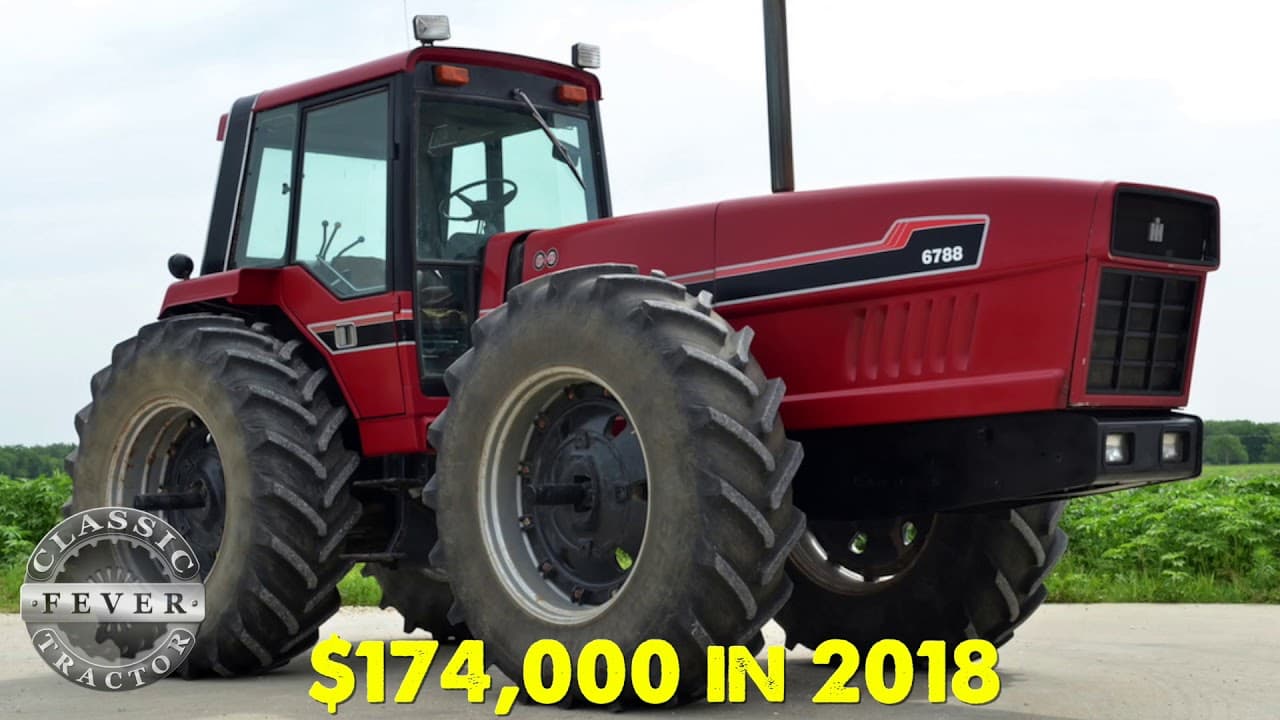

The International Harvester 6788 is a powerful 4x4 articulated tractor built for tough farm work. It has a strong 200 hp diesel engine with 6 cylinders and turbocharging. This engine, made by International Harvester, is liquid-cooled and runs at 2500 rpm. The tractor uses a two-range power shift transmission with 12 forward gears and 6 reverse gears, giving the driver lots of options for different tasks.

This big tractor is 228.3 inches long and 112 inches wide, with a heavy operating weight of 16,920 lb. It has large agricultural tires on all four wheels for good traction in fields. The 6788 comes with a comfortable cab for the driver and uses articulated power steering, which helps it turn easily despite its size. It has a Category 3 hitch at the rear for attaching big farm tools. With its strong engine and sturdy build, the International Harvester 6788 is ready to handle heavy-duty farming jobs with ease.
Show more...

Key Specifications

Power Output: 200 hp (149.1 kW)

Transmission: two-range power shift

Drive Type: 4WD

Operating Weight: 16920 lb (7675 kg)

Fuel Type: Diesel

International Harvester 6788 vs. Similar Tractors

Power Output

The Power Output for the International Harvester 6788 is Excellent. It is greater than 90% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the International Harvester 6788 is Above Average. It is greater than 88% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the International Harvester 6788 is Above Average. It is greater than 90% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the International Harvester 6788 is Average. It is greater than 68% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
International Harvester
Model
DT 466B
Cooling Type
liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement
466 ci (7.6 L)
Bore
4.30 in (109.2 mm)
Stroke
5.35 in (135.9 mm)
Rated RPM
2500
Power Output
200 hp (149.1 kW)

Transmission

Type
two-range power shift
Forward Gears
12
Reverse Gears
6

Drivetrain

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
articulated power
