International Harvester 650

Last Updated: June 2024

Overview

The International Harvester 650 is a two-wheel-drive, standard-tread tractor manufactured by International Harvester from 1956 to 1958. It features a 5.7 L, 350 ci four-cylinder gasoline or LP-gas engine with a power output of 57 HP at 1500 RPM and a sliding gear transmission with 5 forward and 1 reverse gears. The chassis design of 4x2 2WD, power-assisted steering, and disc brakes complement the robust design aimed at utility work on farms. The open operator station and an electric starter were standard, while the rear PTO, rated at 540 RPM, allowed for a wide range of implement attachments.
Show more...

Key Specifications

Category: Utility, Standard Tread

Power Output: 57

Transmission: Sliding gear

Drive Type: 2WD

Operating Weight: 7319

Fuel Type: Gasoline/LP-gas

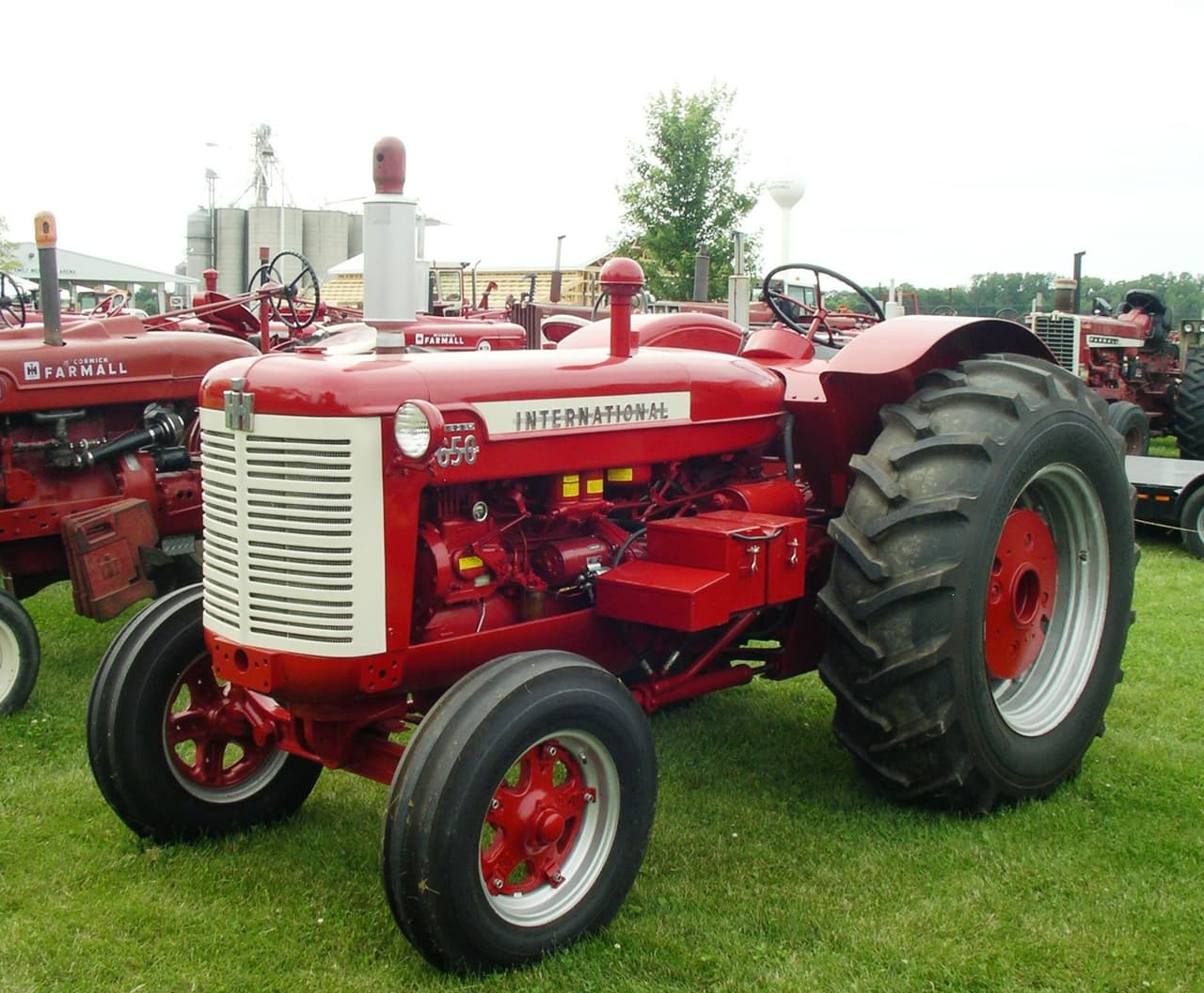

Image Gallery

International Harvester 650 Tractor International Harvester 650 Tractor International Harvester 650 Tractor International Harvester 650 Tractor International Harvester 650 Tractor International Harvester 650 Tractor

International Harvester 650 vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Operating Weight
Average
Greater than 54% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline/LP-gas
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
350
Bore (in)
4.5
Stroke (in)
5.5
Rated RPM
1500
Power Output (hp)
57

Transmission

Type
Sliding gear
Forward Gears
5
Reverse Gears
1
Total Gears
6

Dimensions

Length (in)
135
Width (in)
76
Height (in)
88
Operating Weight (lb)
7319

Power Take-Off (PTO)

PTO Type
Transmission
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power assist
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
34
Rear Tire Width (in)
14
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1958
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
Disc
Hydraulic System Type
Hydra-Touch
