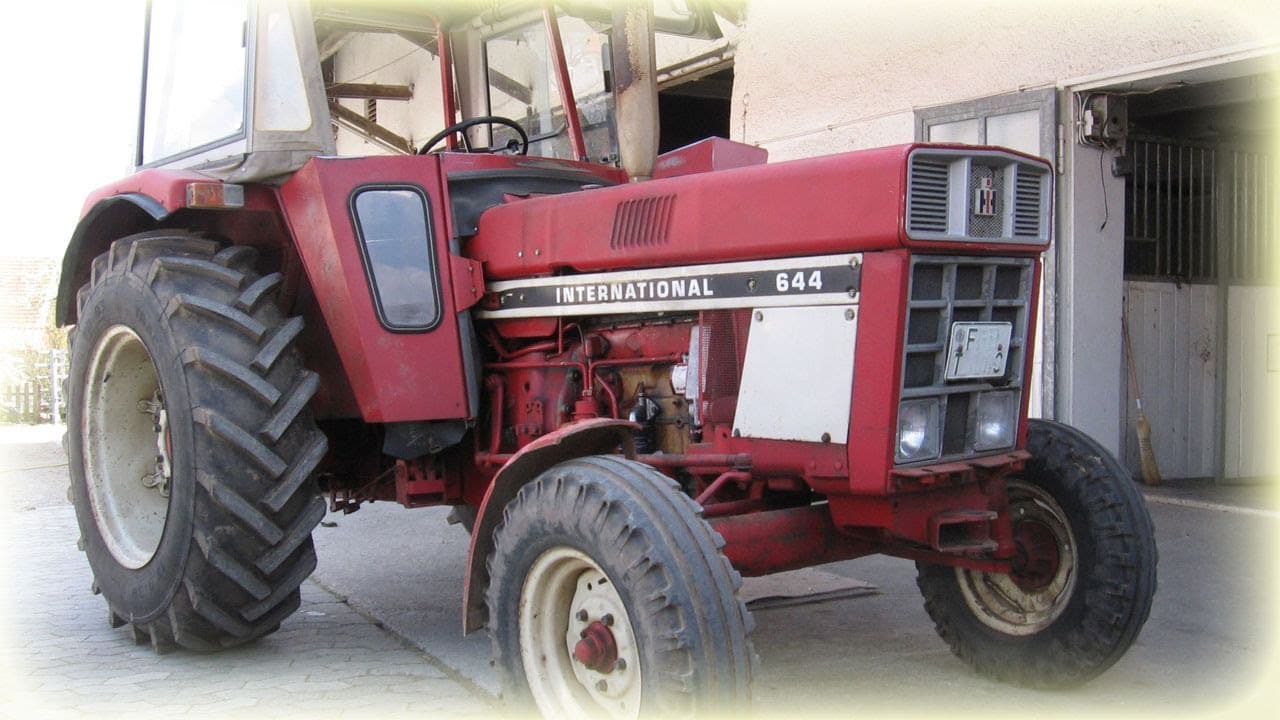

International Harvester 644

Last Updated: June 2024

Overview

The International Harvester 644 is a utility tractor known for its robust engine and solid construction. It is powered by a 60 hp (44.7 kW) International Harvester D-206 diesel engine, with a displacement of 206.4 cubic inches, which provided dependable performance and offered the needed power for a range of farming tasks. The cooling system was liquid-cooled, ensuring the engine ran efficiently even under high strain conditions. Its transmissions offered 8 forward gears and 4 reverse gears which facilitated ample choice for various speeds needed in agricultural operations. The tractor operated on an electric starter system with 12 volts. Although many details about the tractor's steering, hydraulic, and PTO systems remain unspecified, it remains a notable model for its era. The front and rear tire size designations indicate a sturdy machine capable of competent fieldwork. The overall dimensions suggest a mid-sized tractor with substantial weight to provide good traction and stability. This model was a valuable asset, especially in tasks involving plowing, tilling, and haulage, in which a reliable and powerful engine coupled with a versatile transmission was critical.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Operating Weight: 6350 (2WD) / 7078 (4WD)

Fuel Type: Diesel

International Harvester 644 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Operating Weight
Excellent
Greater than 97% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-206
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
206.4
Bore (in)
3.875
Stroke (in)
4.38
Rated RPM
2150
Power Output (hp)
60

Transmission

Type
-
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
148.8
Width (in)
-
Height (in)
98
Operating Weight (lb)
6350 (2WD) / 7078 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
