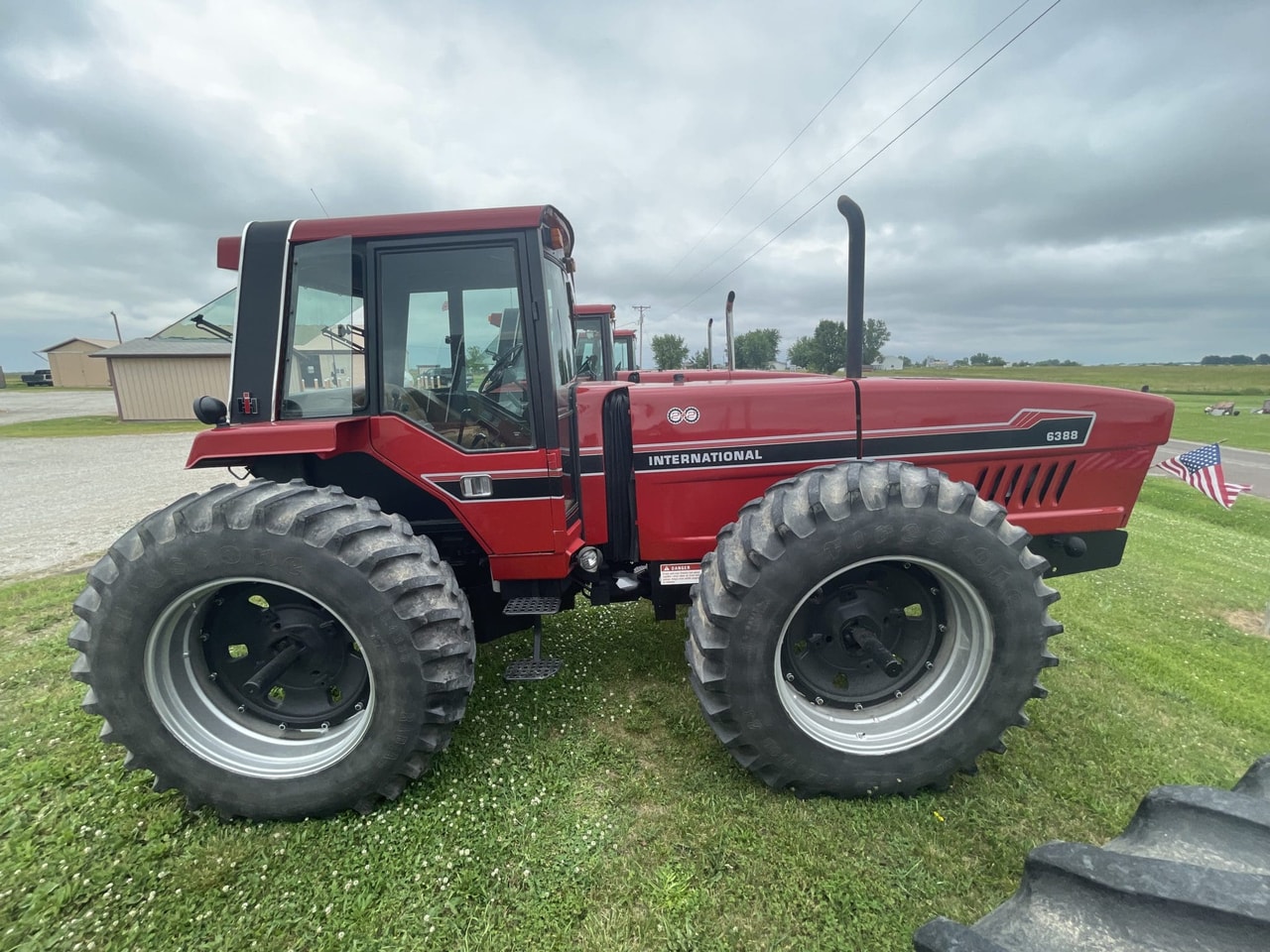

International Harvester 6388

Last Updated: June 2024

Overview

The International Harvester 6388 is an articulated 4WD tractor known for its robustness and versatility in a variety of farming applications. The tractor is powered by an International Harvester turbocharged diesel 6-cylinder liquid-cooled 436 ci engine, capable of delivering 157 hp at a rated RPM of 2400. With a two-range power shift transmission, it offers 16 forward and 8 reverse gears, facilitating a range of speeds and tasks. It features a hydrostatic power-articulated steering system and a closed-center hydraulic system. This model rides on 38-inch rims, both front and rear, with the standard agricultural tire configuration. The tractor's length is 227 inches, width stands at 101.61 inches, and the height of the cab reaches up to 113 inches. With a substantial operating weight of 15,960 lbs, the 6388 is designed to handle heavy-duty operations while maintaining a good balance of maneuverability and stability, thanks to its articulated chassis and 4WD capability.
Show more...

Key Specifications

Power Output: 157

Transmission: two-range power shift

Drive Type: 4WD

Operating Weight: 15960

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
International Harvester
Model
DT 436B
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
6
Displacement (ci)
436
Bore (in)
4.3
Stroke (in)
5
Rated RPM
2400
Power Output (hp)
157

Transmission

Type
two-range power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
227
Width (in)
101.61
Height (in)
113
Operating Weight (lb)
15960

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
articulated hydrostatic power
Coolant Capacity (qts)
34
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
38
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
III/II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
closed center
