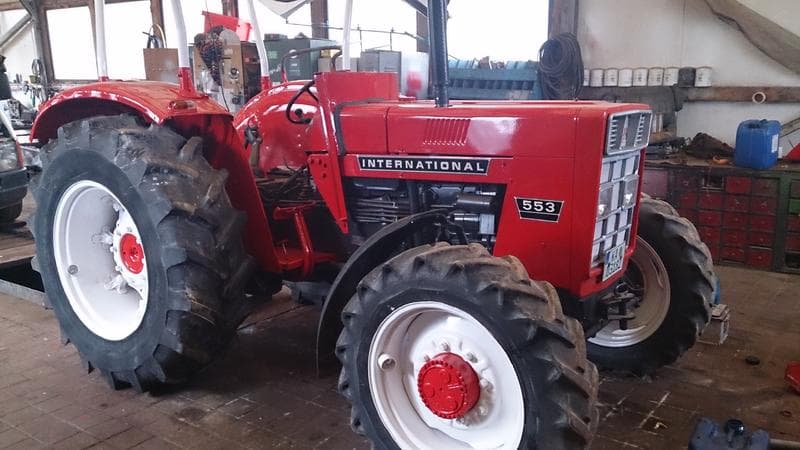

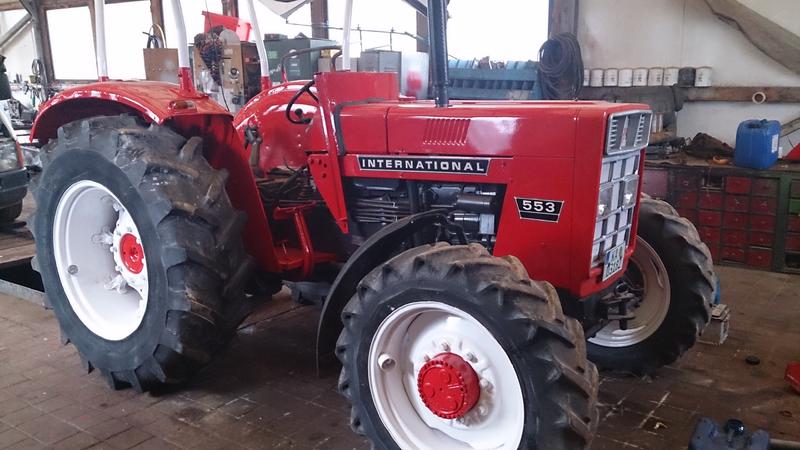

International Harvester 553

Last Updated: June 2024

Overview

The International Harvester 553 is a utility tractor designed for a range of general farming tasks. With its 4x2 2WD chassis, the 553 is equipped with a manual steering system and a partially synchronized transmission system, offering 8 forward and 4 reverse gears. It sports a powerful International Harvester D-179 engine, a 3-cylinder, liquid-cooled diesel unit producing up to 52 horsepower at 2180 RPM. This tractor also features a sizeable oil capacity at 7.9 quarts and a coolant capacity of 16.4 quarts, ensuring efficient engine operation. The 553 has a notable wheelbase of 78.7 inches, offering stability, and comes with an operating weight of 5950 lbs for the 2WD model. Although it’s a robust and capable machine, specifics such as hydraulic system type, tire size, and PTO details remain unknown.
Show more...

Key Specifications

Category: Utility

Power Output: 52

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 5950 (2WD)

Fuel Type: Diesel

Image Gallery

International Harvester 553 Tractor International Harvester 553 Tractor International Harvester 553 Tractor International Harvester 553 Tractor International Harvester 553 Tractor International Harvester 553 Tractor International Harvester 553 Tractor International Harvester 553 Tractor International Harvester 553 Tractor International Harvester 553 Tractor

International Harvester 553 vs. Similar Tractors

Power Output
Average
Greater than 50% of similar tractors.
Operating Weight
Above Average
Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-179
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
179
Bore (in)
3.875
Stroke (in)
5.0625
Rated RPM
2180
Power Output (hp)
52

Transmission

Type
Partially synchronized
Forward Gears
8 (Agriomatic S: 12)
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
135
Width (in)
70.4
Height (in)
69.1
Operating Weight (lb)
5950 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
16.4
Front Tire Diameter (in)
Unknown (Standard: Unknown, Optional: Unknown)
Front Tire Width (in)
-
Rear Tire Diameter (in)
30 (Standard: Unknown, Optional: 38)
Rear Tire Width (in)
16.9 (Standard: Unknown, Optional: 13.6)
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Categories II/I)
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
