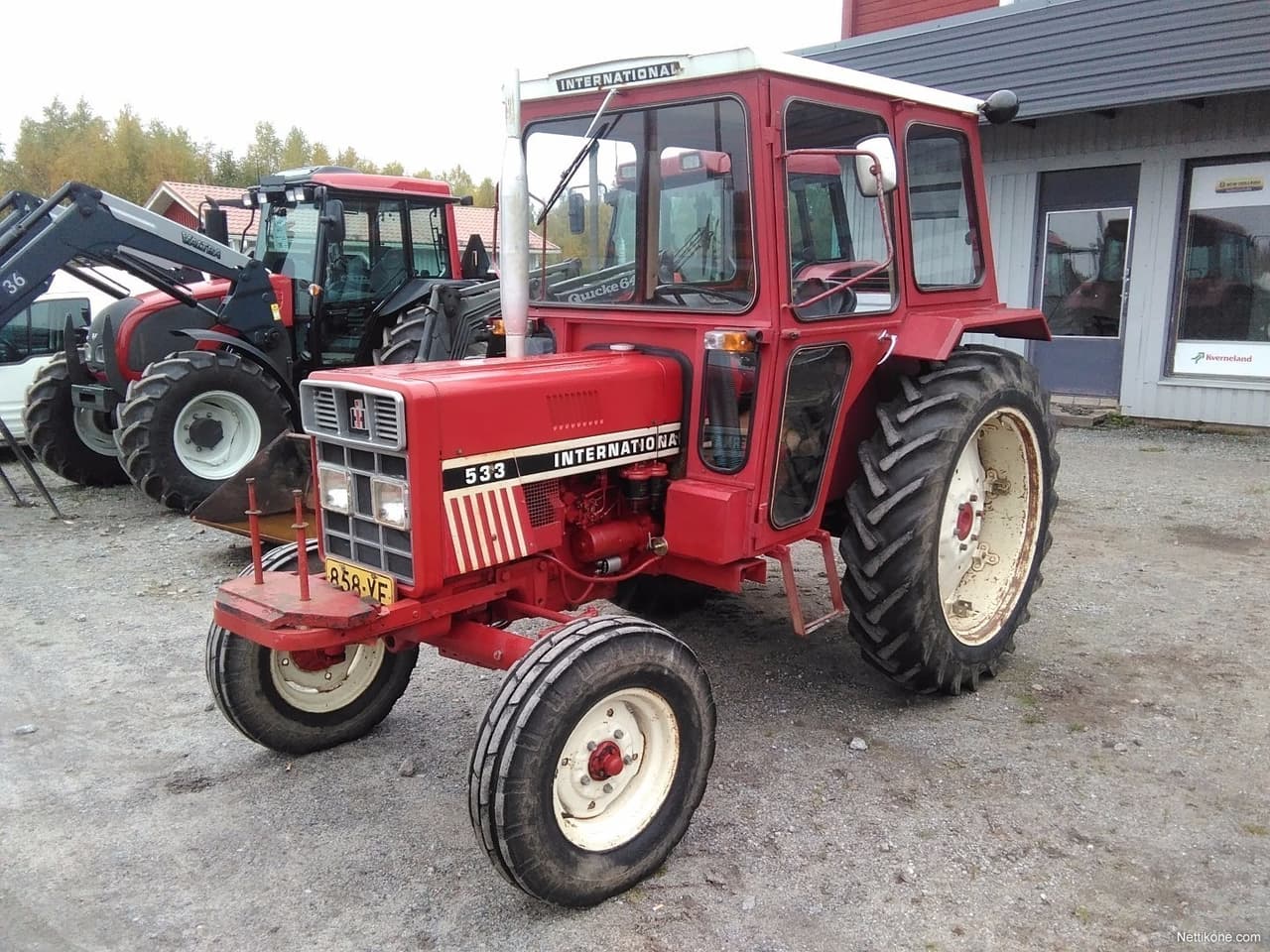

International Harvester 533

Last Updated: June 2024

Overview

The International Harvester 533 is a utility tractor that comes equipped with a 45 horsepower (33.6 kW) International Harvester D-155 diesel engine. It has a manual steering system and features a Synchron transmission with 16 forward gears and 8 reverse gears. The 533 operates on a liquid-cooled engine with direct injection and a displacement of 154.75 cubic inches. It can support different cabin types, from an open operator station to an equipped cab. This model provides a solid operating weight range from 4938 pounds in the 2WD open variant to a maximum of 6107 pounds for the 4WD with a cab. Designed for a variety of tasks, the IH 533 combines robustness and flexibility, offering a reliable choice for those in need of a utility tractor.
Show more...

Key Specifications

Category: Utility

Power Output: 45

Transmission: Synchron

Operating Weight: 4938 (2WD Open) to 6107 (4WD Cab)

Fuel Type: diesel

International Harvester 533 vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Excellent
Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-155
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
direct injection
Cylinders
3
Displacement (ci)
154.75
Bore (in)
3.875
Stroke (in)
4.373
Rated RPM
2200
Power Output (hp)
45

Transmission

Type
Synchron
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
134.7
Width (in)
64.6
Height (in)
94.1 (height with cab)
Operating Weight (lb)
4938 (2WD Open) to 6107 (4WD Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
-
Steering Type
manual*
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open/Cab
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
-
