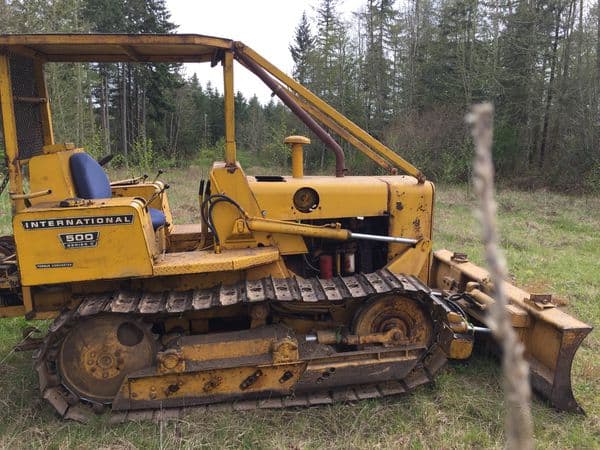

International Harvester 500C

Last Updated: June 2024

Overview

The International Harvester 500C is an agricultural crawler tractor, produced by International Harvester. It comes equipped with a choice between a 3-cylinder diesel engine and a 4-cylinder gasoline engine. Both engine variants are naturally aspirated and deliver 44 horsepower with a rated RPM of 2500. The chassis design represents a crawler type, made for rugged terrains often found in agricultural settings. This tractor utilizes a manual transmission with a total of 4 forward speeds and 1 reverse speed, accommodating various tasks requiring different torque and speed configurations. Being a crawler, the 500C offers enhanced stability and traction compared to traditional wheeled tractors, making it suitable for tasks requiring heavy pulling or where ground preservation is critical. The electrical starter system with 12 volts provides reliable ignition. Specific information about the starting year of manufacture, hitch type, weight dimensions, and some other specs remain undefined for this model, which reflects the varied sources and lack of complete historical data.
Show more...

Key Specifications

Category: Agricultural, Crawler

Power Output: 44

Transmission: Manual

Drive Type: Track

Fuel Type: Diesel, Gasoline

International Harvester 500C vs. Similar Tractors

Power Output
Below Average
Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
International Harvester 2.5L 3-cyl diesel, International Harvester 2.4L 4-cyl gasoline
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel, Gasoline
Induction Type
Naturally aspirated
Cylinders
3 (diesel), 4 (gasoline)
Displacement (ci)
155 (diesel), 145.3 (gasoline)
Bore (in)
3.875 (diesel), 3.375 (gasoline)
Stroke (in)
4.375 (diesel), 4.06 (gasoline)
Rated RPM
2500
Power Output (hp)
44

Transmission

Type
Manual
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
Crawler
Drive Type
Track
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
