International Harvester 484

Last Updated: June 2024

Overview

The International Harvester 484 is a utility tractor, part of the 84 series, manufactured by International Harvester in Doncaster, England from 1977 to 1982. Decked with a three-cylinder, liquid-cooled International Harvester D179 diesel engine, it offers 50 horsepower with a displacement of 179 cubic inches. The tractor is equipped with a syncromesh transmission with 8 forward and 4 reverse gears, providing a practical range of speed options for various tasks. Power steering, a two-post fixed ROPS for operator safety, and a large fuel tank capacity of 20 US gallons facilitate both comfort and extended operating periods. With the power to operate an independent 540 rpm PTO and a rear three-point hitch capable of lifting 3,100 pounds, the 484 model serves well for an assortment of farming duties.
Show more...

Key Specifications

Category: Utility

Power Output: 50

Transmission: Syncromesh

Drive Type: 2WD

Operating Weight: Utility: 5200, Low-profile: 5140

Fuel Type: Diesel

Image Gallery

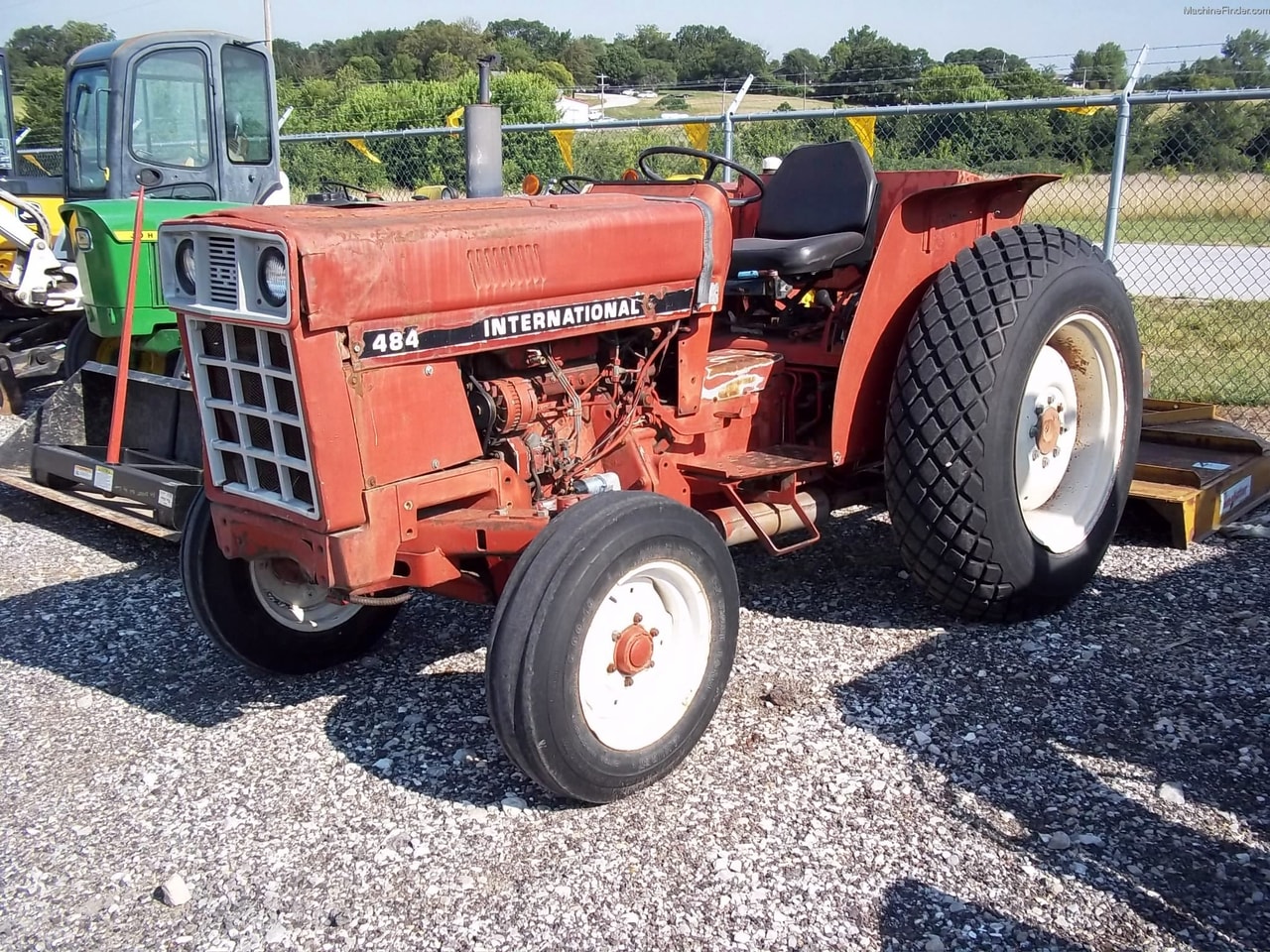

International Harvester 484 Tractor International Harvester 484 Tractor International Harvester 484 Tractor International Harvester 484 Tractor International Harvester 484 Tractor International Harvester 484 Tractor International Harvester 484 Tractor International Harvester 484 Tractor

International Harvester 484 vs. Similar Tractors

Power Output
Average
Greater than 49% of similar tractors.
Hitch Capacity
Average
Greater than 56% of similar tractors.
Operating Weight
Average
Greater than 44% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D179
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement (ci)
179
Bore (in)
3.86
Stroke (in)
5.08
Rated RPM
2200
Power Output (hp)
50

Transmission

Type
Syncromesh
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
Utility: 133.5, Low-profile: 138.2
Width (in)
Utility: 70.1, Low-profile: 78.3
Height (in)
Utility: 60.6, Low-profile: 56.3
Operating Weight (lb)
Utility: 5200, Low-profile: 5140

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
12
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1982
Hitch Type
Three Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
3100 lbs
Operator Station Type
Two-post fixed ROPS
Starter Type
Electric
Brake Type
Independent hydraulic wet disc
Hydraulic System Type
Open center
