International Harvester 475

Last Updated: June 2024

Overview

The International Harvester model 475 is a utility tractor recognized for its robust profile. With a chassis of 4x2 two-wheel drive and a power steering system, it provides a reliable performance in various farm duties. The tractor is powered by a 60 hp Perkins A4.212 diesel engine with a liquid-cooling system to ensure optimal thermal regulation during operation. A displacement of 212 cubic inches and a rated RPM of 2300 also characterizes the engine. One of its key features is the partially synchronized transmission which offers 16 forward gears and 8 reverse gears, allowing for flexibility and efficiency in field tasks. The tractor's dimensions include a length of 128 inches, a width of 64 inches, and an approximate height of 90 inches to the top of the cab, with an operating weight of 5733 pounds.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 5733

Fuel Type: Diesel

Image Gallery

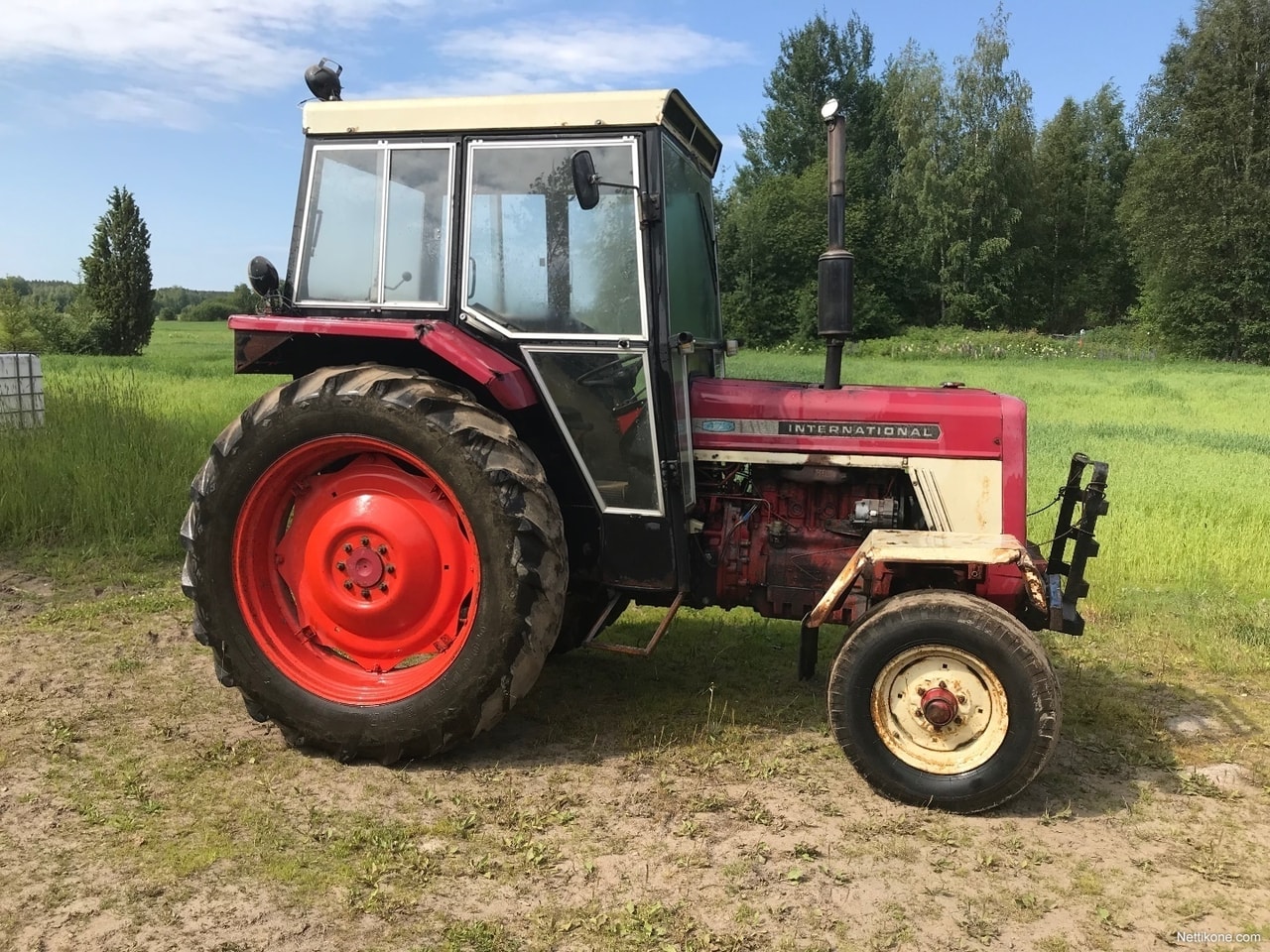

International Harvester 475 Tractor International Harvester 475 Tractor International Harvester 475 Tractor International Harvester 475 Tractor International Harvester 475 Tractor International Harvester 475 Tractor

International Harvester 475 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Operating Weight
Average
Greater than 47% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
A4.212
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
212
Bore (in)
3.875
Stroke (in)
4.5
Rated RPM
2300
Power Output (hp)
60

Transmission

Type
Partially synchronized
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
128
Width (in)
64
Height (in)
90
Operating Weight (lb)
5733

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
