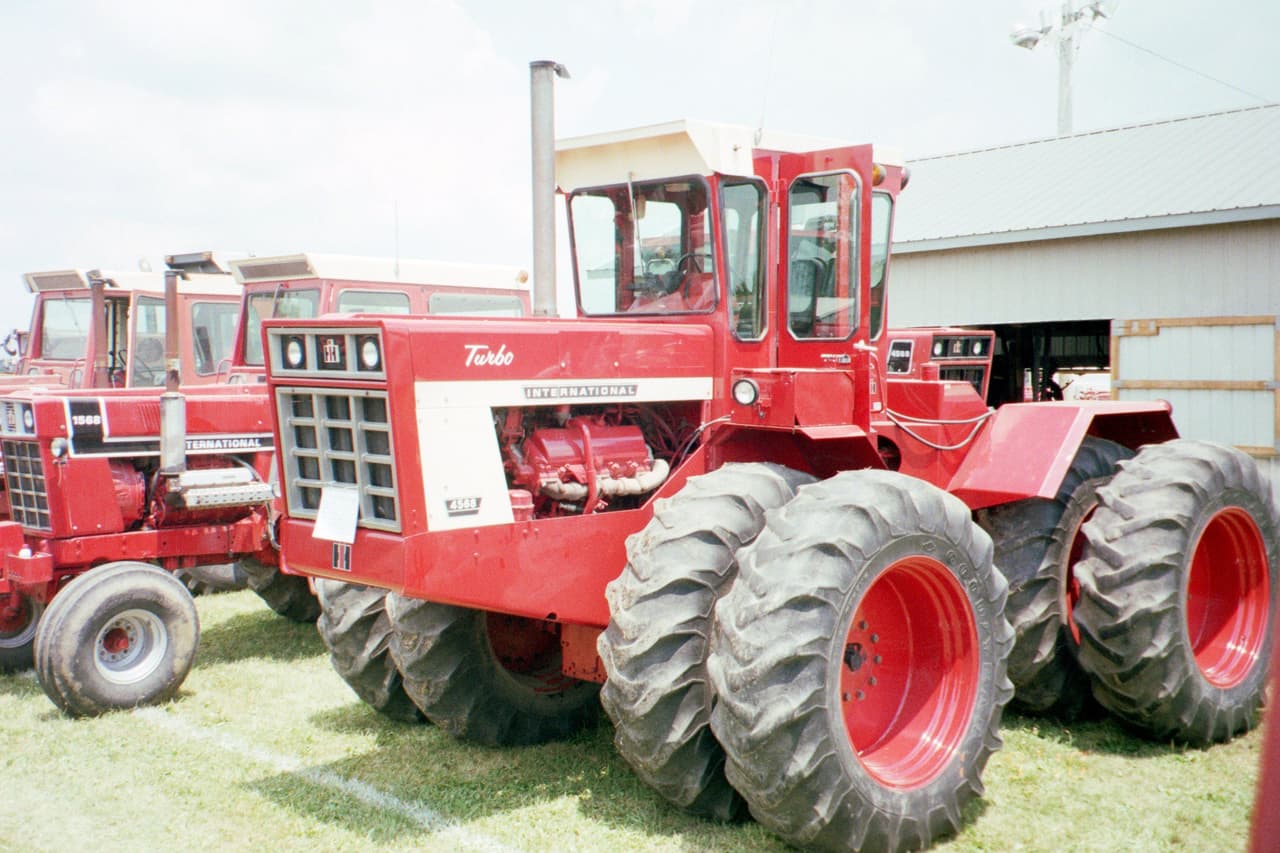

International Harvester 4568

Last Updated: June 2024

Overview

The International Harvester 4568 is a sizable machine powered by the International Harvester DVT-800 turbocharged diesel engine. With a displacement of 798 cubic inches, this 8-cylinder, liquid-cooled V8 configuration delivers an impressive 300 horsepower at 2600 RPM and has a torque rating of 825 lb-ft at 1800 RPM. The tackle tough terrain, this tractor is equipped with a continuous mesh transmission featuring 10 forward and 2 reverse gears, complemented by 24.5-inch Ag tires and robust 3.5-inch diameter front and rear bar axles. It guarantees a comfortable yet versatile operation with a weight of 21,900 lbs and substantial dimensions, measuring 241 inches in length and 116 inches in width. Despite its formidable power and size, the tractor operates efficiently with a 12-volt starting system and an open-center hydraulic system type that ensures consistent performance in various agricultural tasks.
Show more...

Key Specifications

Power Output: 300

Transmission: Continuous mesh

Operating Weight: 21900

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
International Harvester
Model
DVT-800
Cooling Type
Liquid-cooled
Cylinder Orientation
V8
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
8
Displacement (ci)
798
Bore (in)
5.31
Stroke (in)
4.5
Rated RPM
2600
Power Output (hp)
300

Transmission

Type
Continuous mesh
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
241
Width (in)
116
Height (in)
-
Operating Weight (lb)
21900

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24.5
Front Tire Width (in)
-
Rear Tire Diameter (in)
24.5
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 Volt
Brake Type
-
Hydraulic System Type
Open Center
