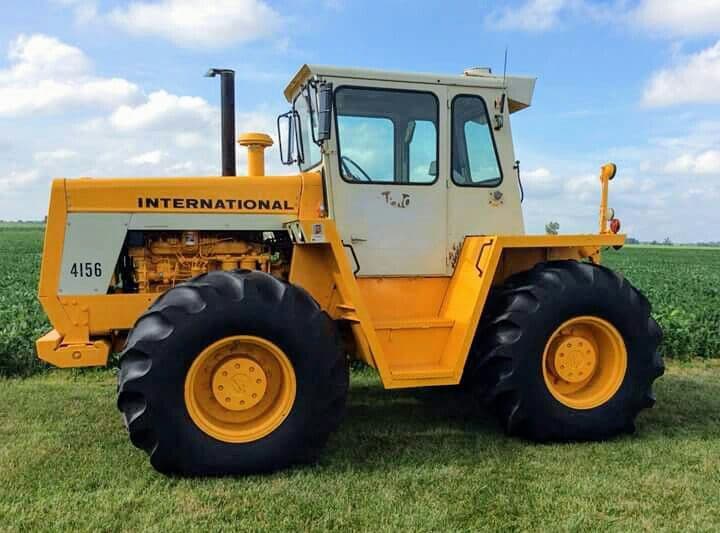

International Harvester 4156

Last Updated: June 2024

Overview

The International Harvester 4156 is a robust four-wheel drive (4WD) tractor that boasts a hydrostatic power steering system capable of being set to either 2-wheel or 4-wheel steering. This versatility in steering type is paired with a hardy chassis designed for a variety of agricultural tasks. Under the hood, it's equipped with a 429 cubic inch, turbocharged, 6-cylinder diesel engine, capable of a rated RPM of 2400. The power is transferred through a manual transmission with 8 forward and 4 reverse gears. The tractor's optimal functioning temperature is maintained by a liquid-cooling system, with a significant coolant capacity of 37 quarts. It rides on large 23.1-inch diameter agricultural tires. The International Harvester 4156 measures 194 inches in length and has a significant width and height of 95.75 inches and 140 inches, respectively. Initially weighing 13,800 pounds, it can be ballasted up to 20,400 pounds for extra traction and stability. Moreover, this model provides a respectable ground clearance of 17 inches, allowing for plenty of room for a variety of crop rows and terrains.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Transmission: Manual

Drive Type: 4WD

Operating Weight: 13800

Fuel Type: Diesel

International Harvester 4156 vs. Similar Tractors

Operating Weight
Average
Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
429
Bore (in)
4.5
Stroke (in)
4.5
Rated RPM
2400
Power Output (hp)
-

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
194
Width (in)
95.75
Height (in)
140
Operating Weight (lb)
13800

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
37
Front Tire Diameter (in)
23.1
Front Tire Width (in)
-
Rear Tire Diameter (in)
23.1
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
