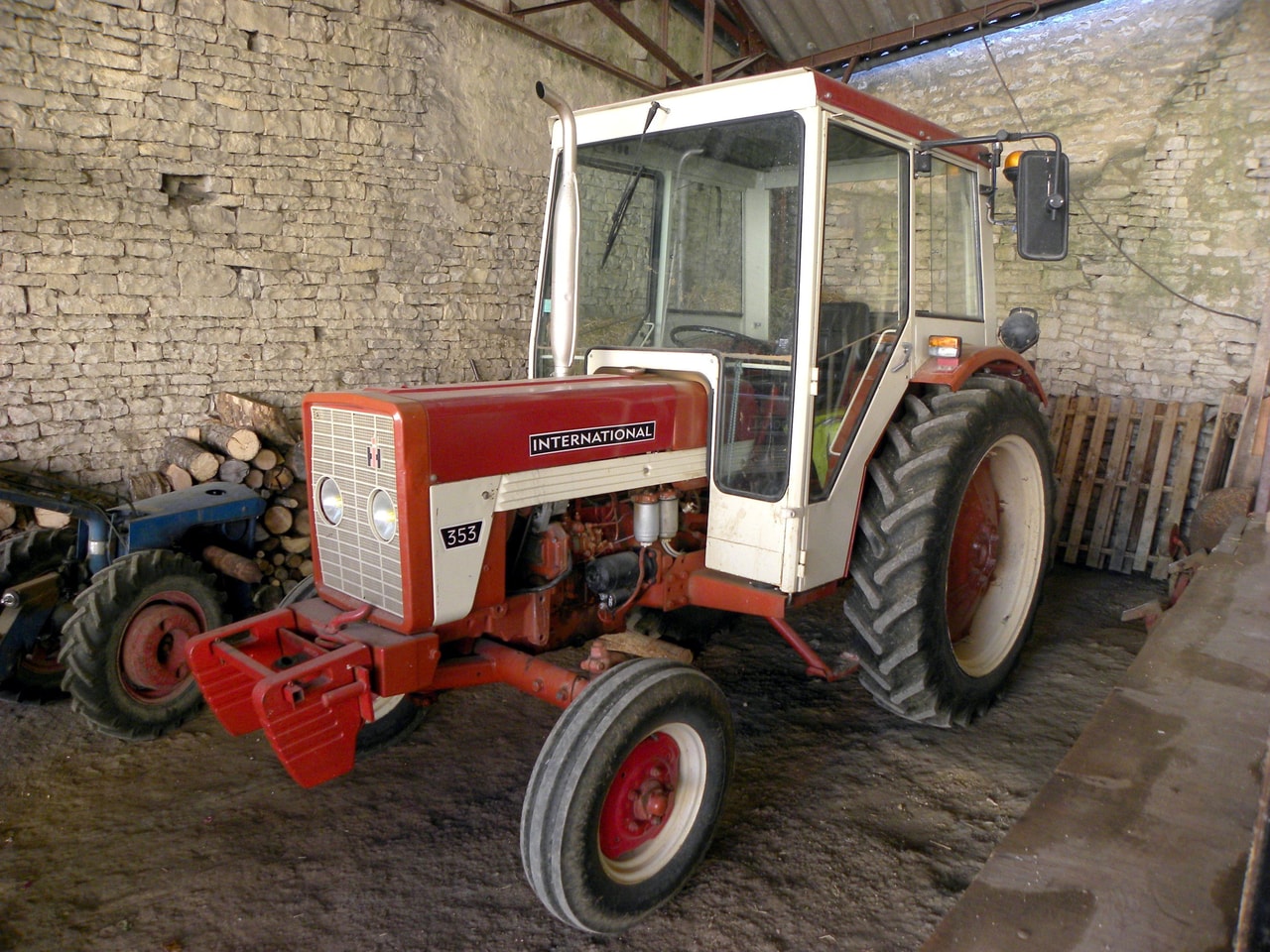

International Harvester 353

Last Updated: June 2024

Overview

The International Harvester 353 is a 2WD utility tractor that was produced by International Harvester. It features a 154.8 cubic-inch, three-cylinder diesel engine with 38 horsepower and operates at a rated RPM of 1900. The tractor's liquid-cooled engine ensures efficient temperature control during operation. With its creeper transmission, it offers 12 forward and 6 reverse gears, enhancing the versatility and control of movement. The tractor has a wheelbase of 75.6 inches, a length of 121.6 inches, width of 63.8 inches, and a steering wheel height of 60 inches. It has an operating weight of 3801 pounds and agricultural tires, with sizes 5.50-16 in the front and 11.2/10-28 in the rear. The model 353 was equipped to handle a variety of tasks with its robust design and reliable powertrain, making it a suitable choice for a range of agricultural tasks. Specific details on its start year of manufacture, hitch specifications, operator station type, PTO type, and additional features are unknown.
Show more...

Key Specifications

Power Output: 38

Transmission: Creeper

Drive Type: 2WD

Operating Weight: 3801

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D-155
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
154.8
Bore (in)
3.87
Stroke (in)
4.37
Rated RPM
1900
Power Output (hp)
38

Transmission

Type
Creeper
Forward Gears
12
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
121.6
Width (in)
63.8
Height (in)
60 (to steering wheel)
Operating Weight (lb)
3801

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
13.7
Front Tire Diameter (in)
16
Front Tire Width (in)
5.5
Rear Tire Diameter (in)
28
Rear Tire Width (in)
11.2/10
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II/I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
