International Harvester 3488

Last Updated: June 2024

Overview

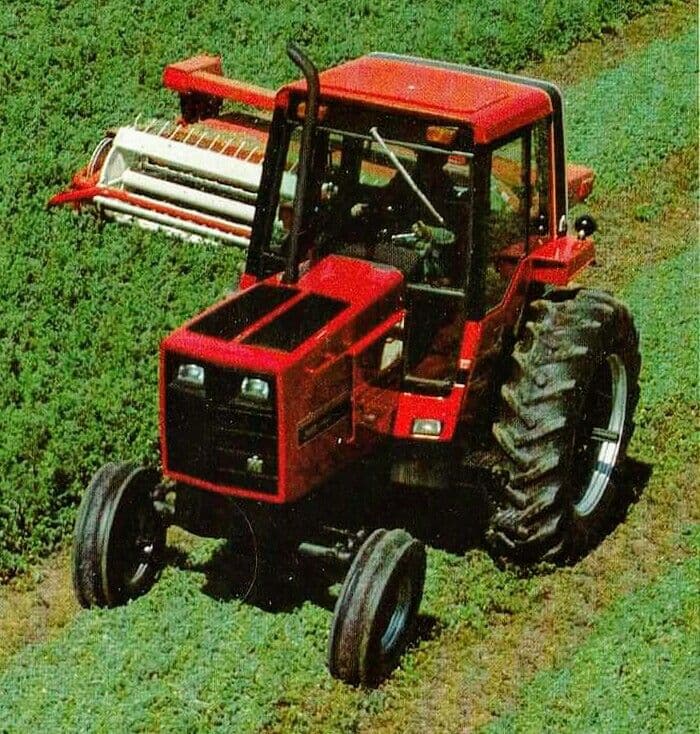

The International Harvester 3488 is a row-crop tractor renowned for its robustness and utility in various agricultural applications. Featuring a 4x2 2WD chassis, this tractor provides the necessary maneuverability for diverse cropping activities. Its hydrostatic transmission offers infinitely variable forward and reverse gears within two ranges, simplifying complex tasks. The tractor is powered by International Harvester's own D466 6-cylinder diesel engine with a displacement of 466 cubic inches, ensuring ample power with a rated rpm of 2400. The liquid-cooled engine contributes to consistent performance during long work hours. Designed for operator comfort, the International Harvester 3488 comes with a cabin providing protection and convenience. The hydraulic system is of the closed center type, delivering reliable performance when managing attachments. This tractor's build and specifications suggest its utility in plowing, planting, and harvesting, with substantial operating weight and dimensions providing stability and durability within the row-crop category. While exact horsepower figures and PTO details remain unknown without further information, the evidently rugged design indicates the tractor's capacity to handle demanding tasks on the farm. The 3488's practicality extends beyond mere power, with features such as the Category II three-point hitch aiding in versatile implement attachment. Despite the lack of data regarding manufacture years and additional innovative features that may enhance its operation, the information available establishes the International Harvester 3488 as a reliable machine for hands-on agricultural management.
Show more...

Key Specifications

Category: Row Crop

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 12880

Fuel Type: Diesel

International Harvester 3488 vs. Similar Tractors

Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
D466
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
6
Displacement (ci)
466
Bore (in)
4.3
Stroke (in)
5.35
Rated RPM
2400
Power Output (hp)
-

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
Total Gears
-

Dimensions

Length (in)
184
Width (in)
102
Height (in)
112 (cab)
Operating Weight (lb)
12880

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
30
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed Center
