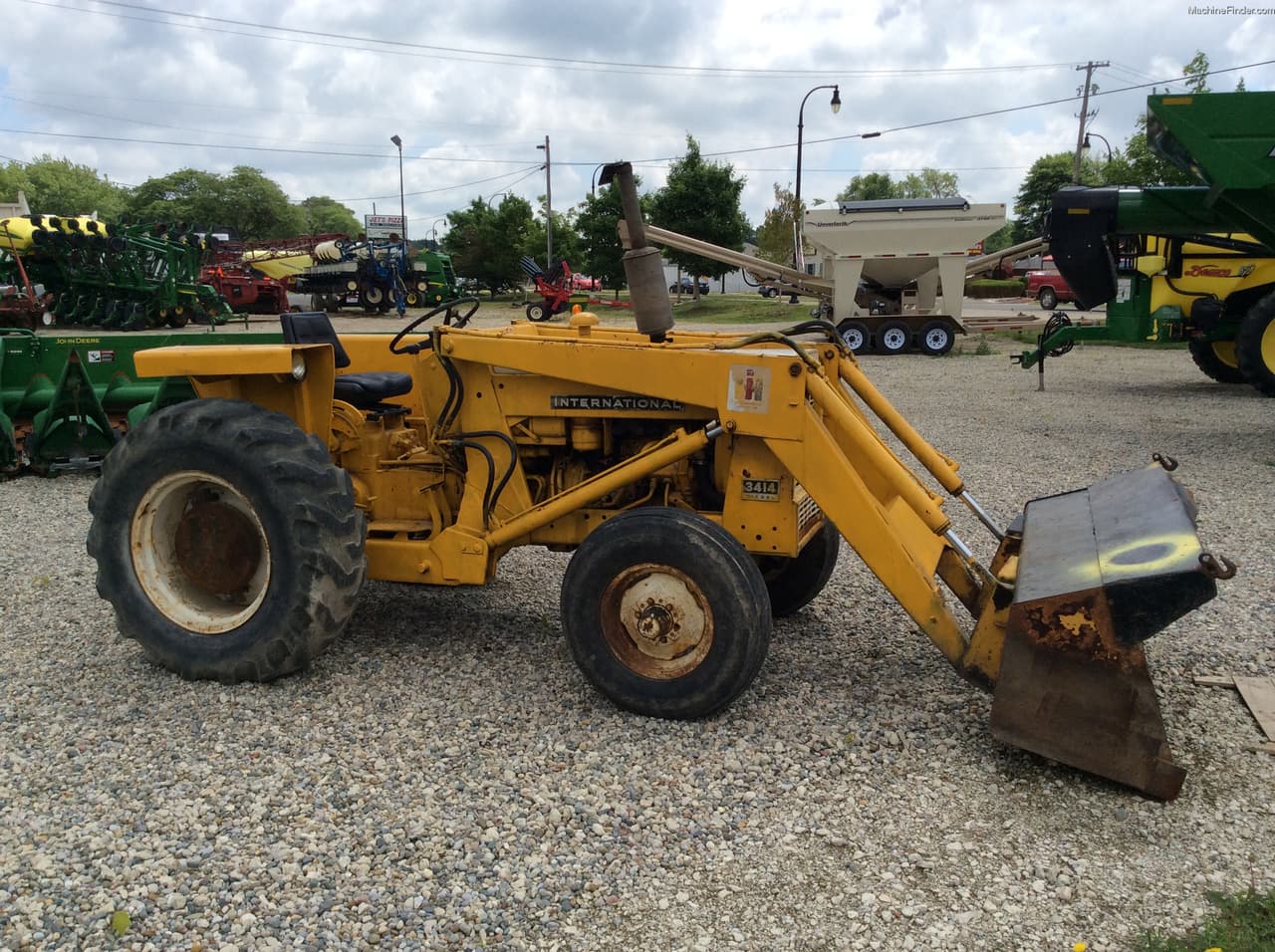

International Harvester 3414

Last Updated: June 2024

Overview

The International Harvester 3414 is a utilitarian industrial tractor manufactured by International Harvester between 1961 and 1968. Designed for a variety of tasks, the 3414 could be fitted with one of two engines, either a 2.4-liter gasoline or a 2.5-liter diesel, both inline four-cylinder models. The tractor offered an impressive cooling capacity of 10 quarts to maintain engine performance during long hours of work. It featured hydrostatic power steering and differential mechanical disc brakes to handle tough environments. The tractor's industrial tires, combined with a weight of 5,203 pounds, contributed to its stability and durability on rugged terrains. Moreover, the tractor had an option for an open operator station or an enclosed cab, providing versatility for different working conditions. The PTO speed of 540 rpm and Capacity 1 hitch enable it to run various attachments, making it a useful machine for numerous industrial applications.
Show more...

Key Specifications

Category: Industrial

Power Output: 43.4

Transmission: Torque Converter

Drive Type: 2WD

Operating Weight: 5203

Fuel Type: Gasoline/Diesel (discrepancy, see notes)

International Harvester 3414 vs. Similar Tractors

Power Output
Average
Greater than 44% of similar tractors.
Operating Weight
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
BC-144 / BD-154 (discrepancy, see notes)
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline/Diesel (discrepancy, see notes)
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
144.0 / 154.0 (discrepancy, see notes)
Bore (in)
3.39 / 3.5 (discrepancy, see notes)
Stroke (in)
4.02
Rated RPM
2000
Power Output (hp)
43.4

Transmission

Type
Torque Converter
Forward Gears
-
Reverse Gears
-
Total Gears
8/8/6 (discrepancy, see notes)

Dimensions

Length (in)
113.8
Width (in)
66.9
Height (in)
60.6
Operating Weight (lb)
5203

Power Take-Off (PTO)

PTO Type
Continuous
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
10
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Industrial
Manufacture - End Year
1968
Hitch Type
-
Hitch Category
Category 1
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open/Cab
Starter Type
Electric
Brake Type
Differential mechanical disc
Hydraulic System Type
-
