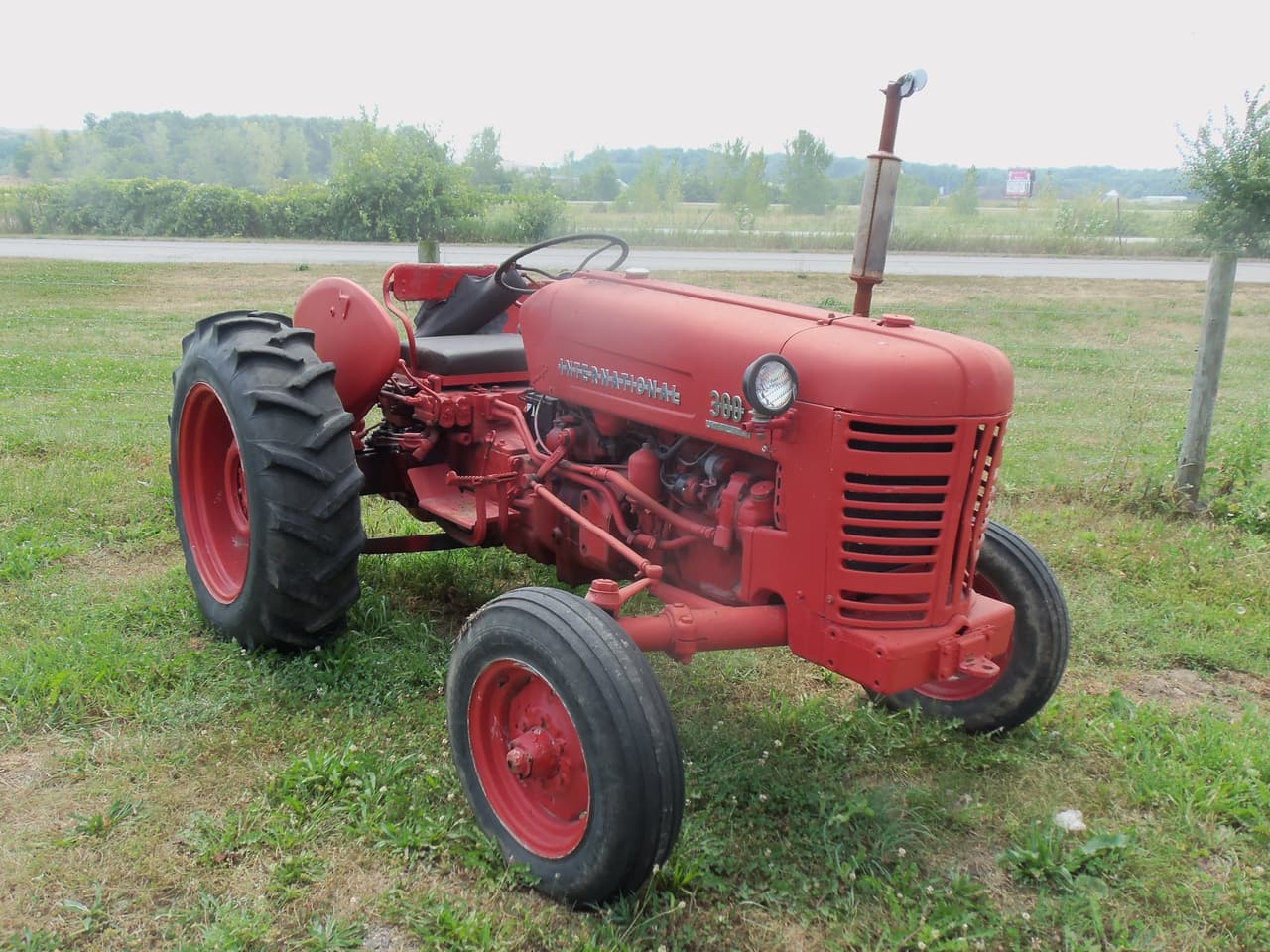

International Harvester 300

Last Updated: June 2024

Overview

The International Harvester 300 is a 2WD utility tractor manufactured by International Harvester in the years 1955 to 1956. It features a 4-cylinder International Harvester C169 engine with a displacement of 169 cubic inches and is liquid-cooled. The tractor could be equipped with either a standard gasoline engine or an LP gas version, and it offered two transmission options: a sliding gear with 5 forward and 1 reverse gear, and the Torque Amplifier transmission – a partial power shift with 10 forward and 2 reverse gears. This machine was designed with an open operator station and utilized differential mechanical disc brakes. It came factory-fitted with 5.50-16 front tires and had rear tires typically sized 10.00-28. With a 75-inch wheelbase, the IH 300 was well-suited for a range of tasks and was notable for its IH Fast Hitch system, simplifying the connection of implements.
Show more...

Key Specifications

Category: Utility

Transmission: Sliding gear / Partial power shift

Drive Type: 2WD

Operating Weight: 4313

Fuel Type: Gasoline or LP gas

International Harvester 300 vs. Similar Tractors

Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
International Harvester
Model
C169
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline or LP gas
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
169
Bore (in)
3.54
Stroke (in)
4.25
Rated RPM
2000 / 1750 (two different ratings)
Power Output (hp)
-

Transmission

Type
Sliding gear / Partial power shift
Forward Gears
5 / 10 (from two transmission options)
Reverse Gears
1 / 2 (from two transmission options)
Total Gears
-

Dimensions

Length (in)
119
Width (in)
65
Height (in)
57.9
Operating Weight (lb)
4313

Power Take-Off (PTO)

PTO Type
Transmission or independent (with Torque Amplifier)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
16.5
Front Tire Diameter (in)
16
Front Tire Width (in)
5.50 (from 5.50-16 tire size)
Rear Tire Diameter (in)
Unknown (28 from the "10.00-28" tire size but the year stamps "2023" are treated as erroneous data)
Rear Tire Width (in)
10.00 (from 10.00-28 tire size)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1956
Hitch Type
IH Fast Hitch
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open operator station
Starter Type
Electric
Brake Type
Differential mechanical disc
Hydraulic System Type
-
