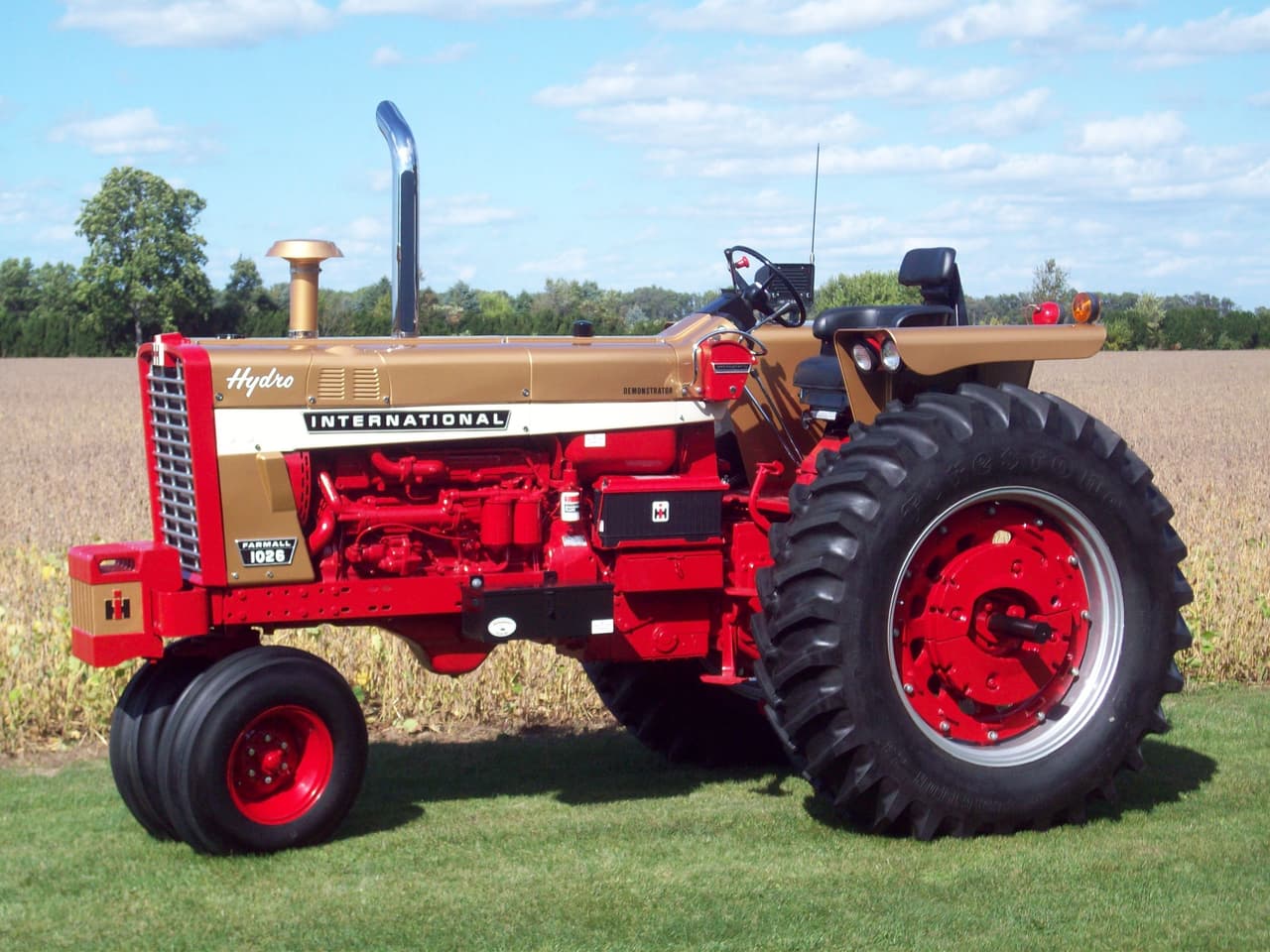

International Harvester 1026

Last Updated: September 2024

Overview

The International Harvester 1026 is a powerful and versatile tractor designed for serious farm work. It features a robust 6-cylinder diesel engine made by International Harvester. This engine, called the DT-407, is turbocharged and liquid-cooled, giving it extra power and efficiency. With 127 horsepower, this tractor can handle tough jobs with ease.

One of the standout features of the 1026 is its hydrostatic transmission. This means the tractor can move forward and backward at any speed without changing gears. It has two ranges for both forward and reverse, giving farmers great control over their work. The tractor weighs 11,100 pounds, making it stable for heavy-duty tasks. It comes with a Category II hitch and a 1000 RPM PTO, which lets it work with many different farm tools. The 1026 also has large agricultural tires, with 11L-15 in the front and 18.4-38 in the rear, providing good traction in various field conditions.
Show more...

Key Specifications

Power Output: 127 hp (94.7 kW)

Transmission: Hydrostatic

Operating Weight: 11100 lb (5035 kg)

Fuel Type: Diesel

International Harvester 1026 vs. Similar Tractors

Power Output

The Power Output for the International Harvester 1026 is Above Average. It is greater than 83% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 1.3K+ tractors in our database)

Operating Weight

The Operating Weight for the International Harvester 1026 is Above Average. It is greater than 80% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 1.2K+ tractors in our database)

Engine Displacement

The Engine Displacement for the International Harvester 1026 is Above Average. It is greater than 84% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the International Harvester 1026 is Average. It is greater than 60% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
International Harvester
Model
DT-407
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement
407 ci (6.7 L)
Bore
4.32 in (109.8 mm)
Stroke
4.62 in (117.5 mm)
Rated RPM
2400
Power Output
127 hp (94.7 kW)

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
