IMT 577

Last Updated: June 2024

Overview

The IMT 577 is a 2WD tractor, outfitted with a 4x2 chassis and powered by a 70 hp diesel engine from IMT with a model designation of S44/AT IMR, which has a displacement of 247.7 ci. It operates at a rated speed of 2000 RPM and has a power output of 70 hp. The transmission is partly synchronized with 10 forward and 2 reverse gears, complemented by hydrostatic power steering. The tractor has a wheelbase of 87.4 inches and estimated weights of 8015 lbs. Details on the tire sizes suggest two different sets of agricultural tires, with dual options for the front tires (7.50-16 and 9.5-24) and a consistent rear tire size (18.4-30). Other specifics such as coolant capacity, precise dimensions for the tires, and hitch-related information are not provided. This tractor's build provides a workhorse suited to various agricultural tasks, with an emphasis on power and simplicity.

Key Specifications

Power Output: 70

Transmission: partly synchronized

Drive Type: 2WD

Operating Weight: 8015

Fuel Type: diesel

Image Gallery

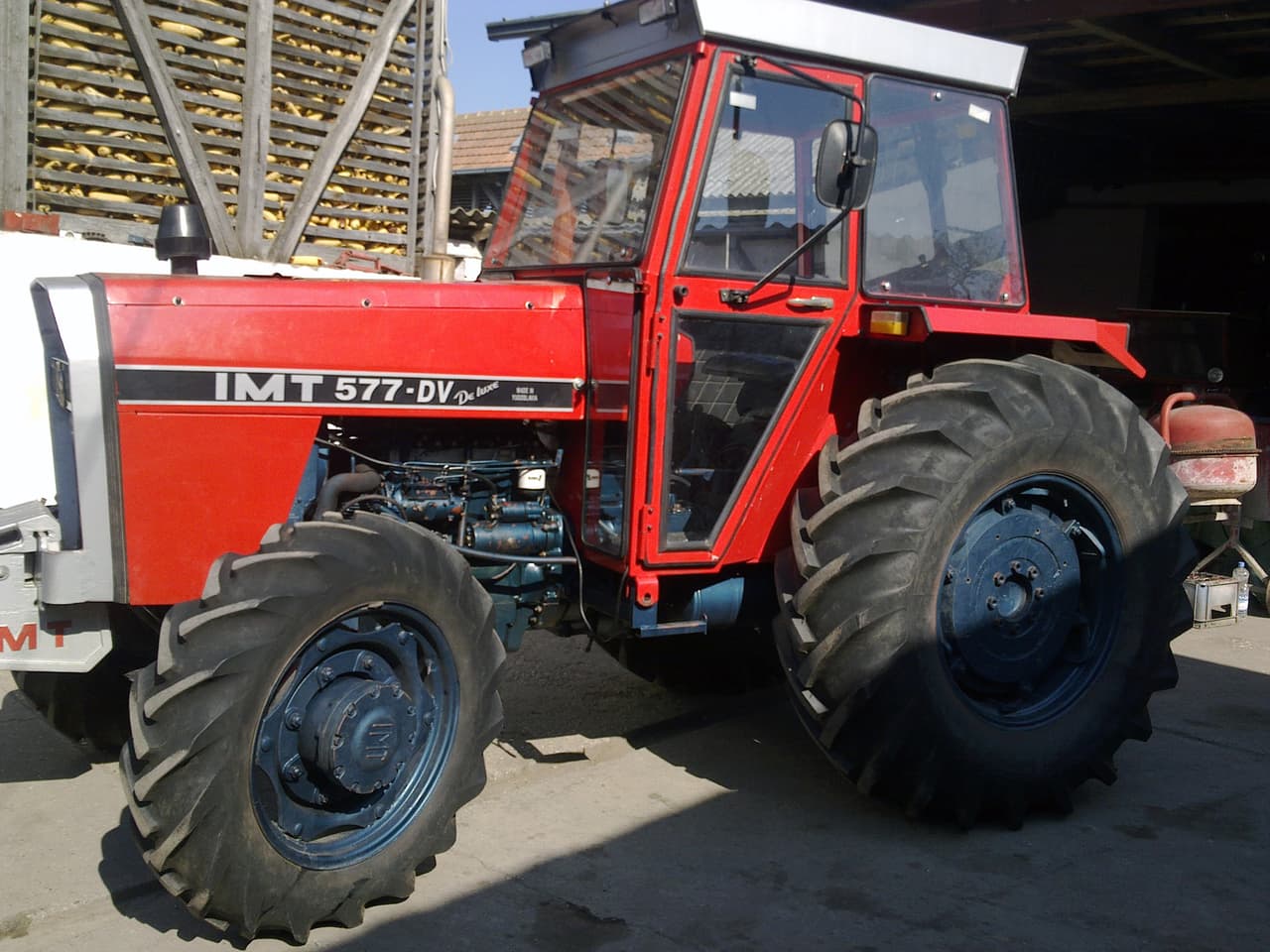

IMT 577 Tractor

Technical Specifications

Engine

Manufacturer: IMT
Model: S44/AT IMR
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 247.7
Bore (in): 3.98
Stroke (in): 5
Rated RPM: 2000
Power Output (hp): 70

Transmission

Type: partly synchronized
Forward Gears: 10
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 166.9
Width (in): 78 (Assumed based on CEG_Width Outside Frame: 6.5 ft)
Height (in): 105.5
Operating Weight (lb): 8015

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (agricultural)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Unknown (CEG_Height - Top of Cab and CEG_Height - Top of ROPS/FOPS suggests either cab or ROPS/FOPS equipped)
Starter Type: -
Brake Type: -
Hydraulic System Type: -
