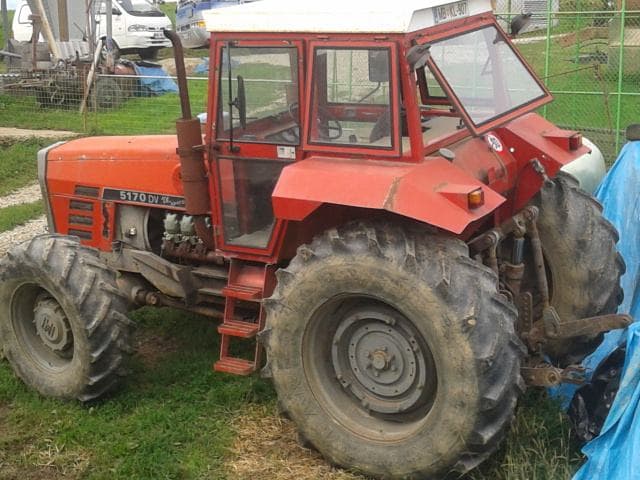

IMT 5170

Last Updated: September 2024

Overview

The IMT 5170 is a powerful 4-wheel drive tractor built for tough farm work. It has a strong Mercedes-Benz diesel engine with 6 cylinders and 173 horsepower. This engine gives the tractor plenty of power for heavy jobs. The tractor weighs 18,015 pounds, which helps it grip the ground well.

The IMT 5170 has a synchro transmission with 16 forward gears and 4 reverse gears. This gives the driver lots of options for different speeds and tasks. The tractor has hydrostatic power steering, making it easy to turn and control. It also has a Category 3 hitch, which lets it use many big farm tools. With its ag tires and 4-wheel drive, this tractor can handle all kinds of farm terrain.
Show more...

Key Specifications

Power Output: 173 hp (129.0 kW)

Transmission: Synchro

Drive Type: 4WD

Operating Weight: 18015 lb (8171 kg)

Fuel Type: Diesel

IMT 5170 vs. Similar Tractors

Power Output

The Power Output for the IMT 5170 is Above Average. It is greater than 88% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 2.6K+ tractors in our database)

Operating Weight

The Operating Weight for the IMT 5170 is Above Average. It is greater than 89% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 2.6K+ tractors in our database)

Engine Displacement

The Engine Displacement for the IMT 5170 is Excellent. It is greater than 94% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the IMT 5170 is Average. It is greater than 45% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Mercedes-Benz
Model
OM 401
Fuel Type
Diesel
Cylinders
6
Displacement
583 ci (9.6 L)
Bore
4.92 in (125.0 mm)
Stroke
5.12 in (130.0 mm)
Rated RPM
2250
Power Output
173 hp (129.0 kW)

Transmission

Type
Synchro
Forward Gears
16
Reverse Gears
4

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
