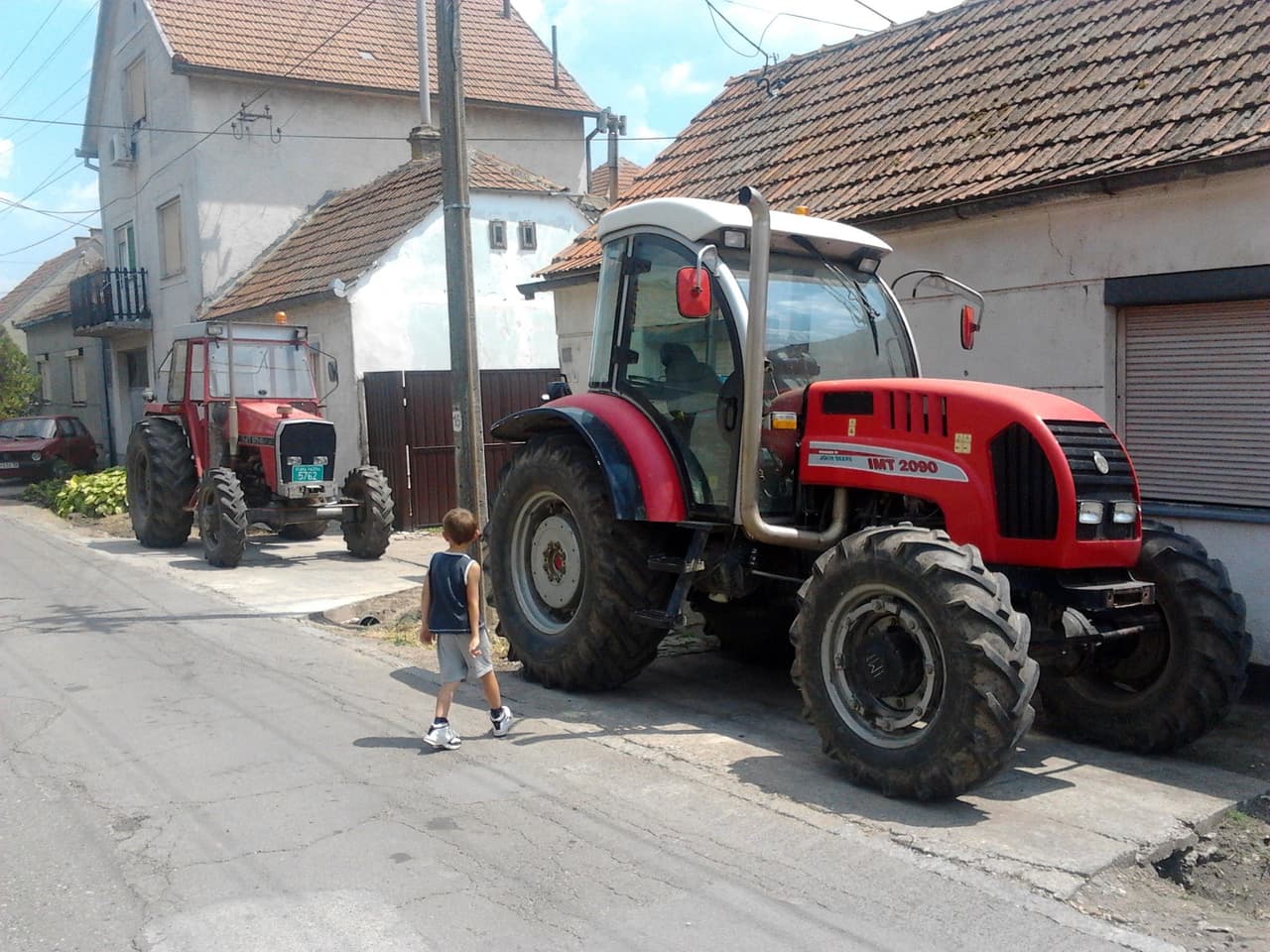

IMT 2090

Last Updated: June 2024

Overview

The IMT 2090 is a durable and powerful agricultural tractor that offers 4-wheel drive capabilities, suited for various farming applications. Its 4-cylinder, turbocharged diesel engine with a displacement of 276.4 cubic inches provides a solid 91 horsepower output and is matched with a 10-speed synchro transmission, allowing for a range of speed options in different field conditions. The hydrostatic power steering system makes for easier handling and increased efficiency while maneuvering on the farm. Designed with a 4x4 MFWD 4WD chassis, it can handle rough terrain effectively. The tractor's dimensions and weight indicate a robust and stable machine for heavy-duty tasks. With features such as hydrostatic power steering and a turbocharged diesel engine, this model embodies a balance between power and utility.
Show more...

Key Specifications

Power Output: 91

Transmission: Synchro

Drive Type: 4WD

Operating Weight: 9261

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
-
Model
4045TF270
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
276.4
Bore (in)
4.19
Stroke (in)
5
Rated RPM
2300
Power Output (hp)
91

Transmission

Type
Synchro
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
140.2
Width (in)
-
Height (in)
106.3
Operating Weight (lb)
9261

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24
Front Tire Width (in)
-
Rear Tire Diameter (in)
30
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
