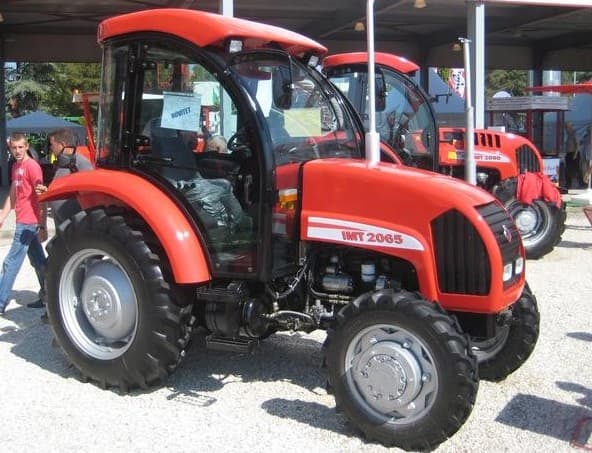

IMT 2065

Last Updated: June 2024

Overview

The IMT 2065 is a robust utility tractor designed to fulfil a variety of tasks in a broad range of environments. It features a 4x4 MFWD 4WD chassis, making it capable of handling rough terrain. The IMT 2065 is powered by a direct injection, liquid-cooled IMT DM34/T diesel engine, which offers a displacement of 152.6 cubic inches and a power output of 62.4 horsepower at a rated RPM of 2250. This utility tractor is equipped with a hydrostatic power steering system and a 10-speed synchromesh transmission that includes 10 forward gears and 2 reverse gears. The tractor exhibits dimensions of 129.1 inches in length, 65.6 inches in width, and stands 90.9 inches tall, with an operating weight of 6129 pounds. It rides on front tires sized 7.50-20 and rear tires sized 13.6-28, which contribute to its stable stance and reliable operation in varied agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 62.4

Transmission: synchromesh

Drive Type: 4WD

Operating Weight: 6129

Fuel Type: diesel

IMT 2065 vs. Similar Tractors

Power Output
Average
Greater than 59% of similar tractors.
Operating Weight
Average
Greater than 48% of similar tractors.

Technical Specifications

Engine

Manufacturer
IMT
Model
DM34/T
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
direct injection
Cylinders
3
Displacement (ci)
152.6
Bore (in)
3.6
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
62.4

Transmission

Type
synchromesh
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
129.1
Width (in)
65.6
Height (in)
90.9
Operating Weight (lb)
6129

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
-
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
