IMR Rakovica R 110 DV Turbo

Last Updated: June 2024

Overview

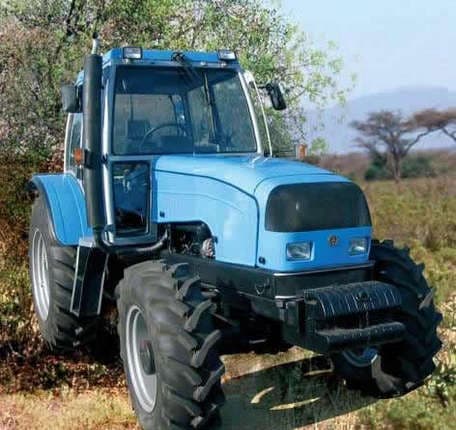

The IMR Rakovica R 110 DV Turbo is a row-crop tractor known for its robust power and versatility in the field. Equipped with a 108.6 horsepower turbocharged diesel engine and a 354 cubic inch displacement, it has enough power to handle a variety of intensive agricultural tasks. The tractor has a synchronized gear transmission with 24 forward and reverse gears, accompanied by a dry disc clutch, making it capable of precise operation with the convenience of hydrostatic power steering. Weighing in at 11,905 pounds with dimensions of 187.4 inches in length, 105.5 inches in width, and 118.1 inches in height, the tractor presents itself as a substantial piece of machinery. The tractor's chassis is 4x4 MFWD 4WD, meaning it is well-suited for work on different types of terrain. It also employs a hydrostatic power steering system for easy maneuverability. With an electric starter system and operating at an engine rated RPM of 2250, the R 110 DV Turbo provides reliable starts and consistent power. While tire specifications and other details like hydraulic system type and hitch capabilities are not specified, this tractor remains a strong candidate for farmers who need a durable tractor for a variety of tasks.
Show more...

Key Specifications

Category: Row Crop

Power Output: 108.6

Transmission: Synchronized Gear

Drive Type: 4WD

Operating Weight: 11905

Fuel Type: Diesel

IMR Rakovica R 110 DV Turbo vs. Similar Tractors

Power Output
Below Average
Greater than 27% of similar tractors.
Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
-
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
354
Bore (in)
3.875
Stroke (in)
5
Rated RPM
2250
Power Output (hp)
108.6

Transmission

Type
Synchronized Gear
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
187.4
Width (in)
105.5
Height (in)
118.1
Operating Weight (lb)
11905

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
