Husqvarna YTH22V42

Last Updated: June 2024

Overview

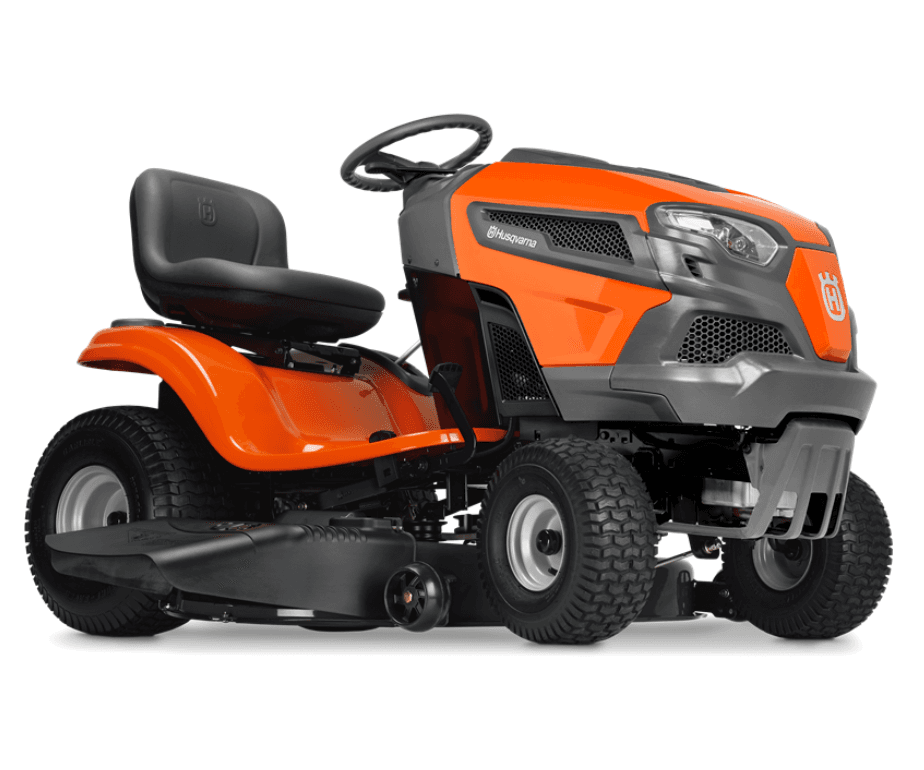

The Husqvarna YTH22V42 is a 2WD lawn tractor produced by Husqvarna and equipped with a 0.7 L, (40.0 cu·in) two-cylinder Briggs & Stratton 407777 gasoline engine. This air-cooled engine delivers 23 HP of power at 3,600 RPM, making it well-suited for yard tasks. A key feature of this model is its belt-driven hydrostatic transmission which grants infinite forward and reverse gears, offering smooth acceleration and ease of use without the need for manual gear changes. The lawn tractor's chassis design is 4x2 2WD, suitable for flat terrain and general lawn maintenance work. It includes a manual steering system and an open operator station which provides comfort and convenience during use. Despite its robust capabilities, the YTH22V42 maintains a compact and maneuverable size, with a length of 68.9 inches, a width of 43.3 inches, and a height of 41.3 inches.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 23

Transmission: Belt-driven hydrostatic

Drive Type: 2WD

Fuel Type: Gasoline

Husqvarna YTH22V42 vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.

Technical Specifications

Engine

Manufacturer
Briggs & Stratton
Model
407777
Cooling Type
Air-cooled
Cylinder Orientation
V
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
40
Bore (in)
2.95
Stroke (in)
2.87
Rated RPM
3,600
Power Output (hp)
23

Transmission

Type
Belt-driven hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
Infinite

Dimensions

Length (in)
68.9
Width (in)
43.3
Height (in)
41.3
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
Independent with manual clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
15
Front Tire Width (in)
6
Rear Tire Diameter (in)
20
Rear Tire Width (in)
8
Front/Rear Rim Diameter (in)
-
Tire Type
Lawn/turf
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
