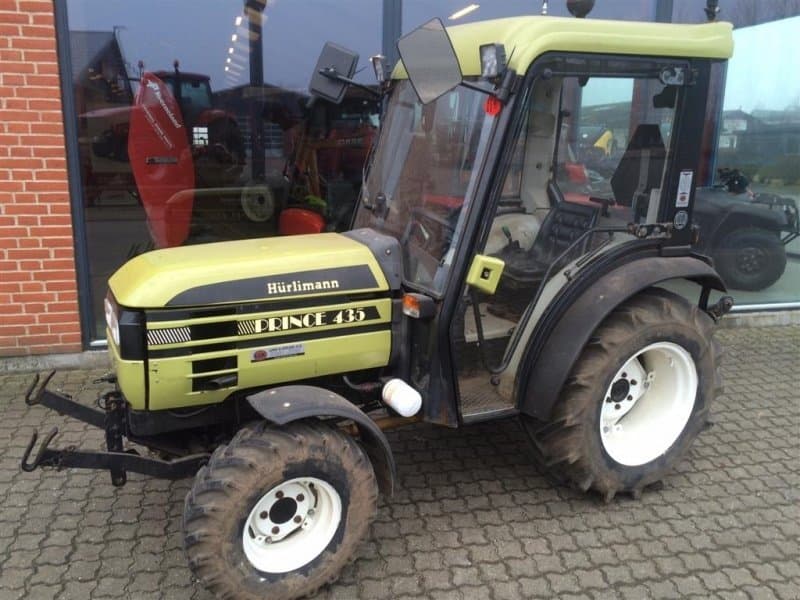

Hurlimann Prince 435

Last Updated: June 2024

Overview

The Hurlimann Prince 435 is a compact utility tractor renowned for its robustness and efficiency in various agricultural tasks. With a four-wheel-drive (4WD) chassis and a 35 horsepower Mitsubishi K4F-D diesel engine, this model is capable of handling diverse farming activities. The engine is liquid-cooled with a 90.9 cubic inch displacement and operates at a rated RPM of 3000. Long working sessions are made comfortable via hydrostatic power steering. The tractor features a synchronized shuttle transmission with 12 forward and reverse gears, facilitating smooth and precise control. Overall dimensions include a length of 116.54 inches and a minimum width of 40.19 inches, and an operating weight of 2513 pounds. This model presents a good balance between power and size, making it particularly suitable for smaller farms or specialized tasks where maneuverability is key.
Show more...

Key Specifications

Category: Utility

Power Output: 35

Transmission: Synchronized shuttle

Drive Type: 4WD

Operating Weight: 2513

Fuel Type: Diesel

Hurlimann Prince 435 vs. Similar Tractors

Power Output
Average
Greater than 32% of similar tractors.
Operating Weight
Below Average
Greater than 20% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K4F-D
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement (ci)
90.9
Bore (in)
3.071
Stroke (in)
3.071
Rated RPM
3000
Power Output (hp)
35

Transmission

Type
Synchronized shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
116.54
Width (in)
40.19
Height (in)
-
Operating Weight (lb)
2513

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (assumed from Rear Type: 1)
Hitch Category
Category 1 (assumed from Rear Type: 1)
Hitch Position
Rear (assumed from Hitch Type standard)
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (assumed from Engine - Starter volts: 12)
Brake Type
-
Hydraulic System Type
-
