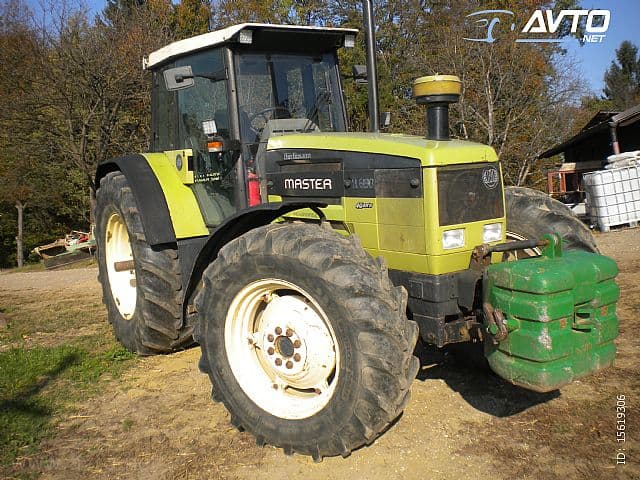

Hurlimann H-6190 Master

Last Updated: June 2024

Overview

The Hurlimann H-6190 Master is a robust row-crop tractor well-suited for a variety of agricultural tasks. Equipped with a powerful SAME 1000.6, six-cylinder, turbocharged, liquid-cooled diesel engine, it delivers an impressive 189 horsepower with a displacement of 366.12 cubic inches. The engine operates at a rated speed of 2350 RPM with a torque output of 483.9 lb-ft at 1350 RPM. The tractor's four-wheel-drive chassis and power steering enhance maneuverability and productivity on diverse terrains. The H-6190 Master comes with a 9-speed powershift transmission offering 27 forward and reverse gears to handle various work demands. Its overall dimensions include a length of 177.6 inches, width of 92.9 inches and a cab height of 114.2 inches. With a substantial operating weight of 13228 lbs, this model is built to reliably handle heavy-duty operations with ample traction provided by standard ag tires, front 16.9R30 and rear 20.8R38. Alternative tire sizes are also optional for specialized purposes.
Show more...

Key Specifications

Category: Row Crop

Power Output: 189

Transmission: 9-speed power shift

Drive Type: 4WD

Operating Weight: 13228

Fuel Type: Diesel

Hurlimann H-6190 Master vs. Similar Tractors

Power Output
Average
Greater than 69% of similar tractors.
Operating Weight
Average
Greater than 53% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.6
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
366.12
Bore (in)
4.13
Stroke (in)
4.55
Rated RPM
2350
Power Output (hp)
189

Transmission

Type
9-speed power shift
Forward Gears
27
Reverse Gears
27
Total Gears
-

Dimensions

Length (in)
177.6
Width (in)
92.9
Height (in)
114.2 (height of the cab because it's the taller measurement)
Operating Weight (lb)
13228

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (standard), Ag (optional)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (deduced from the height measurement)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
