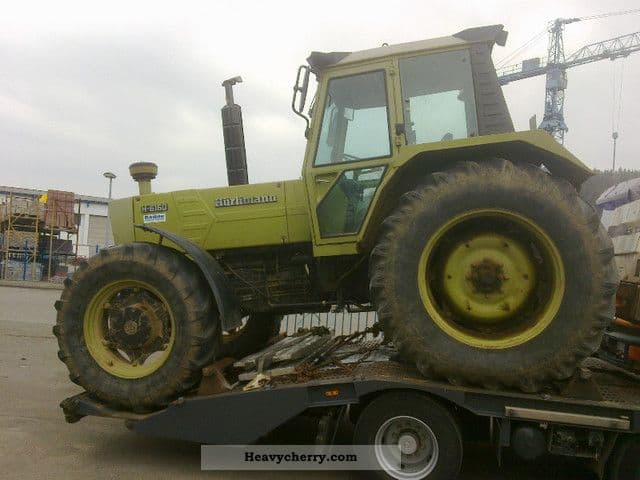

Hurlimann H-6160

Last Updated: June 2024

Overview

The Hurlimann H-6160 is a tractor known for its robust power and strong engine performance, with its 160 hp turbocharged diesel engine manufactured by SAME. It offers a traditional manual transmission with a substantial 12 forward and 4 reverse gears, complementing its two-wheel drive (2WD) chassis design. This tractor is equipped with hydrostatic power steering, which improves handling and maneuverability. The engine displaces a significant 417.38 cubic inches, offering reliable power output for a variety of agricultural tasks. While the specification of the tractor's valve configuration or cooling type remains unspecified, it is powered by a 6-cylinder configuration with a rated RPM of 2200. The Hurlimann H-6160 is also characterized by its considerable size and weight, marked by a length of over 186 inches and an operational weight of 14,332 pounds. However, details like the hitch system, operator station type, and additional features remain undefined, which could potentially limit some specifics regarding compatible attachments and comfort amenity details.
Show more...

Key Specifications

Power Output: 160

Transmission: Manual

Drive Type: 2WD

Operating Weight: 14,332

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
turbocharged
Cylinders
6
Displacement (ci)
417.38
Bore (in)
4.3307
Stroke (in)
4.7244
Rated RPM
2200
Power Output (hp)
160

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
186.61
Width (in)
-
Height (in)
116.14
Operating Weight (lb)
14,332

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
30
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
