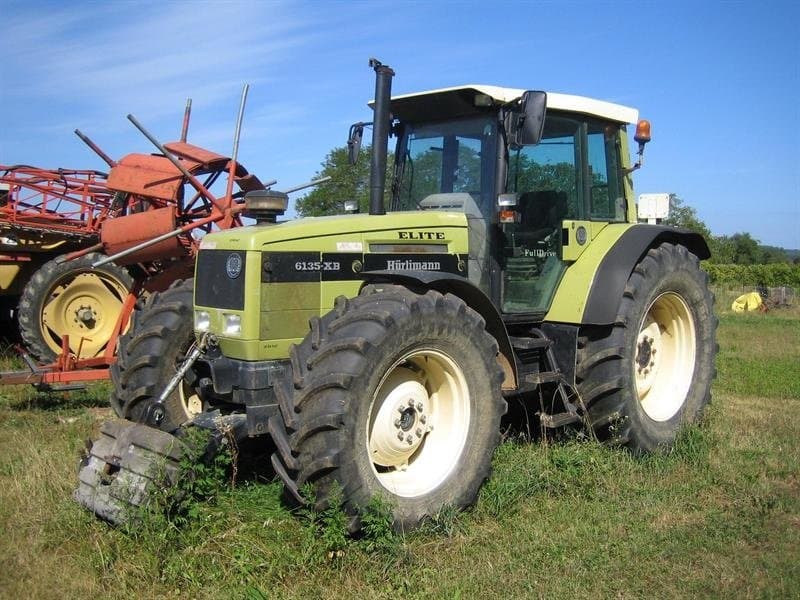

Hurlimann H-6135 Elite XB

Last Updated: June 2024

Overview

The Hurlimann H-6135 Elite XB is a tractor designed with a focus on power and durability. Its 2WD chassis indicates it may be more suitable for flat terrain and general farm tasks rather than heavy traction work that would require 4WD. The tractor is equipped with a 24-speed transmission paired with hydrostatic power steering, ensuring smooth operation and control. Its 6-cylinder turbo diesel engine by SAME produces 132 horsepower and is rated for a maximum RPM of 2500, with a peak torque of 376.2 lb-ft at 1400 RPM. This combination grants the H-6135 Elite robust performance for a range of agricultural tasks. With a wheelbase of 108.27 inches and operating weight of 11,355 lbs, it is geared towards a balance of stability and maneuverability. Standard agricultural tires are fitted, with dimensions 14.9R30 for the front and 18.4R38 for the rear, completing a package that is ready to take on varied farm duties while maintaining a relatively conventional size and weight profile.
Show more...

Key Specifications

Power Output: 132

Drive Type: 2WD

Operating Weight: 11355

Fuel Type: Turbo Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbo Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
366.12
Bore (in)
4.1338
Stroke (in)
4.5472
Rated RPM
2500
Power Output (hp)
132

Transmission

Type
-
Forward Gears
24
Reverse Gears
24
Total Gears
24

Dimensions

Length (in)
181.1
Width (in)
-
Height (in)
110.6
Operating Weight (lb)
11355

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
30
Front Tire Width (in)
14.9
Rear Tire Diameter (in)
38
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (implied by Ag front/rear designation)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
