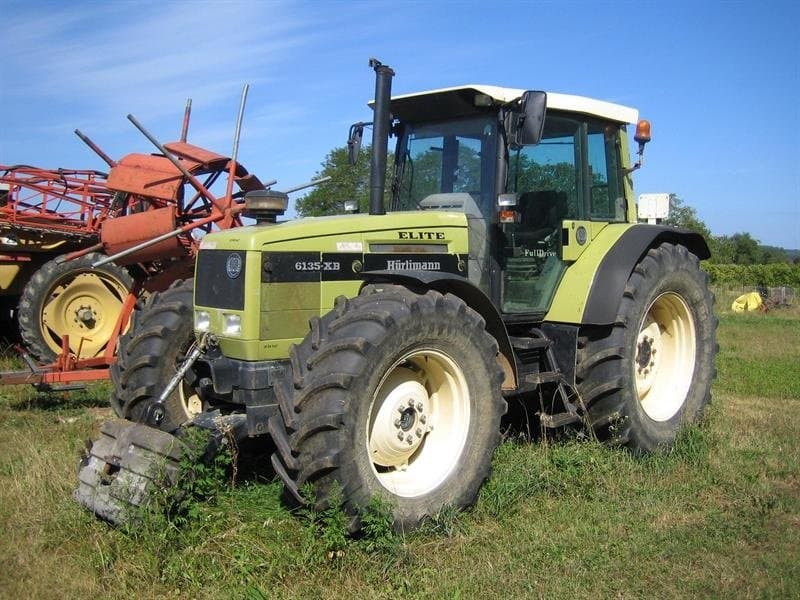

Hurlimann H-6135 Elite

Last Updated: June 2024

Overview

The Hurlimann H-6135 Elite is a tractor designed with a 4x2 2WD chassis and powered steering for ease of maneuverability. It features a robust 132 hp (98.4 kW) turbocharged diesel engine, the SAME 1000.6 WT, with a displacement of 366.12 cubic inches, liquid cooling, and six cylinders. This power unit is known for its strong torque output of 362.9 lb-ft at a low 1450 RPM, suitable for various heavy-duty applications. The tractor operates with a 36-speed synchronized transmission, which could be enhanced to a 48-speed synchronized creeper transmission for tasks requiring precise speed adjustments. It supports standard agricultural tires measuring 16.9x30 inches at the front and 18.4x38 inches at the rear, with optional tire sizes available. The Hurlimann H-6135 Elite is designed to tackle demanding farm tasks while offering simplicity and robustness in its operation.
Show more...

Key Specifications

Power Output: 132

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 10759

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.6 WT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
366.12
Bore (in)
4.1338
Stroke (in)
4.5472
Rated RPM
2500
Power Output (hp)
132

Transmission

Type
Synchronized
Forward Gears
36
Reverse Gears
36
Total Gears
-

Dimensions

Length (in)
180.7
Width (in)
87.4
Height (in)
110.4
Operating Weight (lb)
10759

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
30
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
