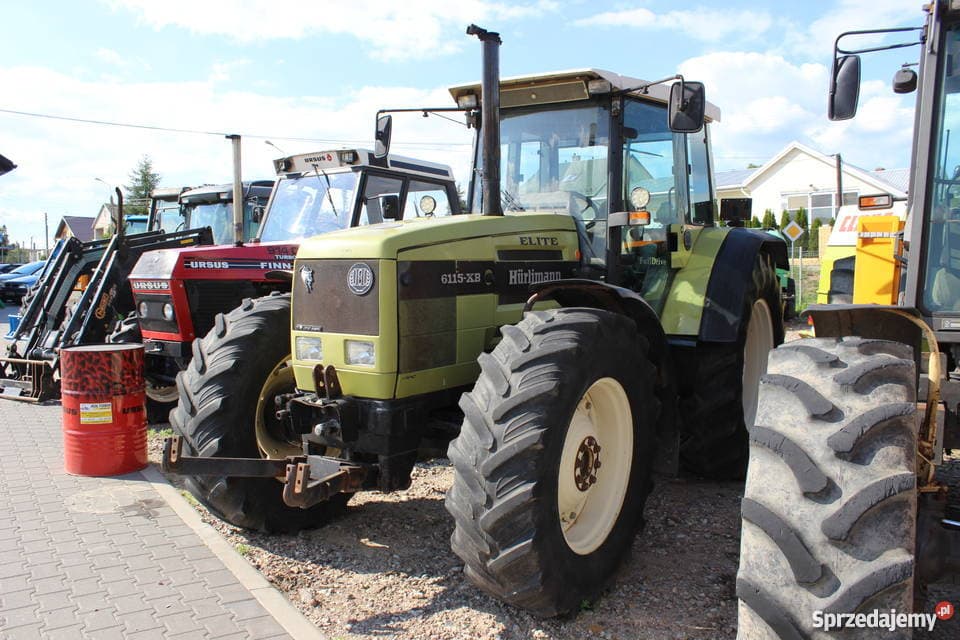

Hurlimann H-6115 Elite XB

Last Updated: June 2024

Overview

The Hurlimann H-6115 Elite XB is a 2WD tractor, characterised by its 4x2 chassis configuration and powered by a SAME diesel engine with 6 cylinders, resulting in a 115 horsepower output at 2500 RPM. The engine's displacement stands at 366.12 cubic inches, with a bore and stroke of approximately 4.1338 inches and 4.5472 inches, respectively. Specifically designed to handle a variety of agricultural tasks, the tractor offers a robust 24-speed transmission, allowing for a wide range of speeds suited for different types of work. The tractor sits on a 108.27 inches wheelbase which contributes to its stability, while the hydrostatic power steering system provides ease of handling. The tractor's weight is 10,870 pounds, across a length of 181.1 inches, and stands tall with a height of 110.6 inches, which can affect its center of gravity and stability. It is outfitted with radial agricultural tires, 14.9R30 in the front and 18.4R38 in the rear, supporting the tractor's operation in various field conditions. The full extent of the tractor's features, such as the hitch system, operator station type, PTO, and hydraulic system, remain unspecified in the data provided.
Show more...

Key Specifications

Power Output: 115

Drive Type: 2WD

Operating Weight: 10,870

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
366.12
Bore (in)
4.1338
Stroke (in)
4.5472
Rated RPM
2500
Power Output (hp)
115

Transmission

Type
-
Forward Gears
24
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
181.1
Width (in)
-
Height (in)
110.6
Operating Weight (lb)
10,870

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
30
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Radial, Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
