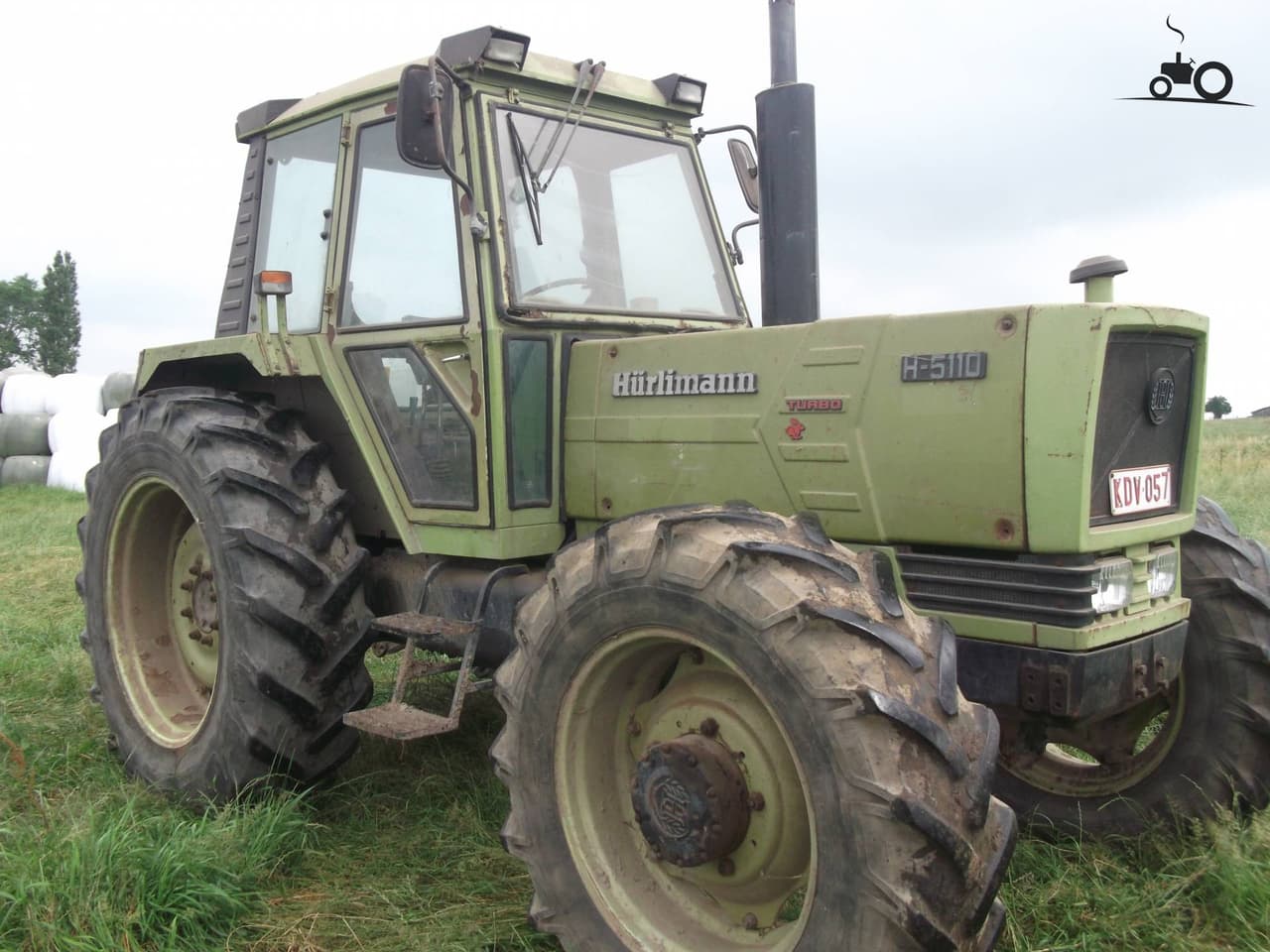

Hurlimann H-5110

Last Updated: September 2024

Overview

The Hurlimann H-5110 is a powerful 2WD tractor designed for farm work. It has a SAME diesel engine with 5 cylinders and 112.7 horsepower. The engine is turbocharged and liquid-cooled, which helps it run smoothly and efficiently. With a length of 174.4 inches and a height of 111.8 inches, this tractor is a good size for many farm tasks.

One of the H-5110's strong points is its transmission. It has 24 forward gears and 6 reverse gears, giving the driver lots of options for different jobs. The tractor also has power steering, making it easier to control. It weighs 9,259 pounds, which helps it stay stable during tough work. The three-point hitch at the back lets farmers attach various tools and equipment. With its 18.5-inch ground clearance, the H-5110 can handle rough terrain well. The tractor's wheelbase is 103.9 inches, which adds to its stability and pulling power.
Show more...

Key Specifications

Power Output: 113 hp (84.0 kW)

Transmission: Synchronized, Creeper

Drive Type: 2WD

Operating Weight: 9259 lb (4200 kg)

Fuel Type: Diesel

Hurlimann H-5110 vs. Similar Tractors

Power Output

The Power Output for the Hurlimann H-5110 is Above Average. It is greater than 78% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Hurlimann H-5110 is Above Average. It is greater than 71% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Hurlimann H-5110 is Above Average. It is greater than 76% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Hurlimann H-5110 is Average. It is greater than 34% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
SAME
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
5
Displacement
348 ci (5.7 L)
Bore
4.33 in (110.0 mm)
Stroke
4.72 in (119.9 mm)
Rated RPM
2200
Power Output
113 hp (84.0 kW)

Transmission

Type
Synchronized, Creeper
Forward Gears
24
Reverse Gears
6

Drivetrain

Chassis
4x2
Drive Type
2WD
Steering Type
Power
