Hurlimann H-468 Prestige

Last Updated: June 2024

Overview

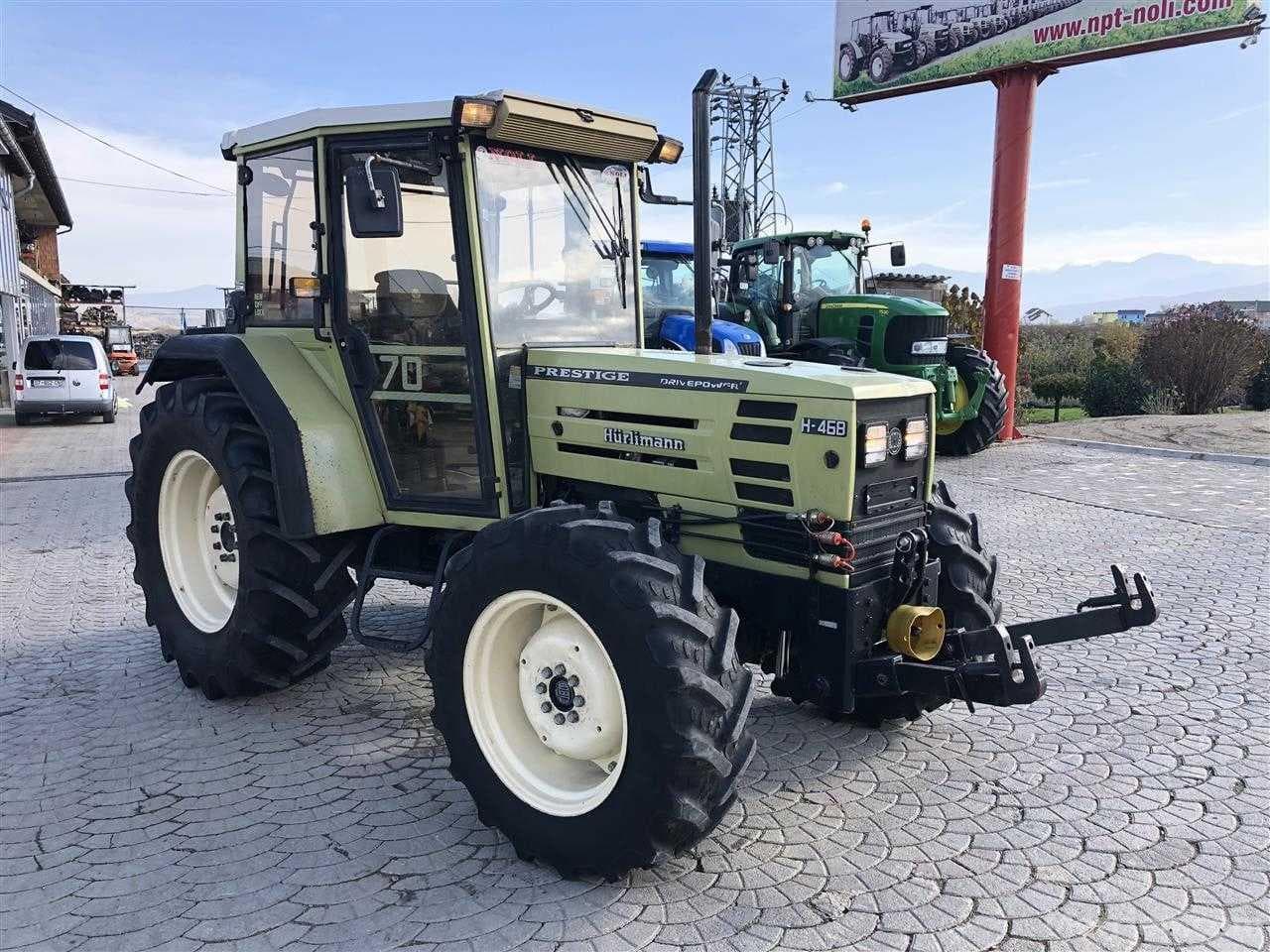

The Hurlimann H-468 Prestige is a 4x2 2WD tractor, indicating a two-wheel-drive chassis design with a hydrostatic power steering system for ease of maneuverability. It is equipped with a turbocharged four-cylinder diesel engine, sourced from SAME, with a displacement of 244.08 cubic inches, producing 88 horsepower at a rated 2500 RPM. The tractor comes with a 20-gear transmission setup, suitable for a variety of tasks ranging from field work to hauling. Exact specifics on the tractor's cooling system, valve configuration, and the induction type beyond the turbocharging detail are not provided. It shows significant towing capacity, powered by a reliable drive system, but details on its hydraulic system, PTO, or electronic features could not be inferred from the data. The physical dimensions of the tractor suggest it is built for robust tasks, with ample weight to support stability and traction during operations.
Show more...

Key Specifications

Power Output: 88

Drive Type: 2WD

Operating Weight: 7452

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
244.08
Bore (in)
4.1338
Stroke (in)
4.5472
Rated RPM
2500
Power Output (hp)
88

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
20

Dimensions

Length (in)
159.05
Width (in)
-
Height (in)
102.36
Operating Weight (lb)
7452

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
