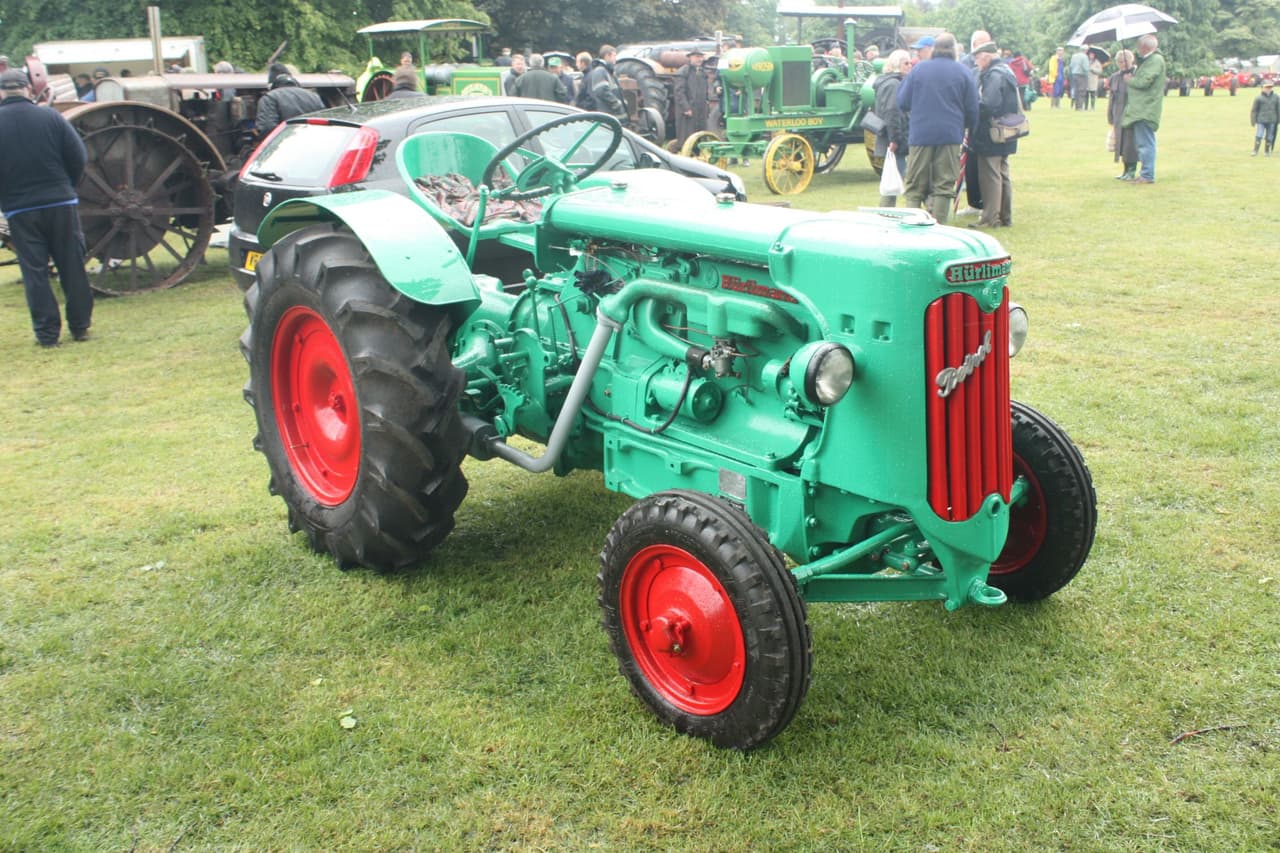

Hurlimann H-351

Last Updated: June 2024

Overview

The Hurlimann H-351 is a tractor model that seems to cater to various agricultural needs. Equipped with a 3-cylinder, SAME 983 L air-cooled diesel engine, it delivers 49.6 horsepower at a rated RPM of 2200. The option of having either 2WD or 4WD, along with manual steering and 12 forward gears plus 3 reverse (synchronized), or an option for creeper transmission with 16 forward gears and 4 reverse, unfolds a variety of task capabilities. The H-351 is versatile in wheelbase numbers and tire equipment with both standard and optional sizes, indicating adaptability for different farming conditions. Weights vary between 4409 lbs for the 2WD version and 5026 lbs for the 4WD version. The tractor measures 124 inches in length (without hitch) and has a substantial hood height of over 51 inches, with the ROPS reaching up to 89.8 inches. Despite the lack of information on features such as hitch lift capacity or hydraulic system type, this model seems to provide a robust platform for a range of agricultural tasks.
Show more...

Key Specifications

Power Output: 49.6

Transmission: Synchronized, with optional creeper

Drive Type: Optional 2WD or 4WD

Operating Weight: 4409 (2WD) to 5026 (4WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
983 L
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
165.7
Bore (in)
3.86
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
49.6

Transmission

Type
Synchronized, with optional creeper
Forward Gears
12 (16 with creeper option)
Reverse Gears
3 (4 with creeper option)
Total Gears
15 (20 with creeper option)

Dimensions

Length (in)
124 (without hitch)
Width (in)
66*
Height (in)
89.8 (Height to ROPS)
Operating Weight (lb)
4409 (2WD) to 5026 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
Optional 2WD or 4WD
Steering Type
Manual, with optional power steering
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (Specification provided is for tire size, not diameter)
Front Tire Width (in)
Unknown (Specification provided is for tire size, not width)
Rear Tire Diameter (in)
Unknown (Specification provided is for tire size, not diameter)
Rear Tire Width (in)
Unknown (Specification provided is for tire size, not width)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural standard and optional sizes
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
-
