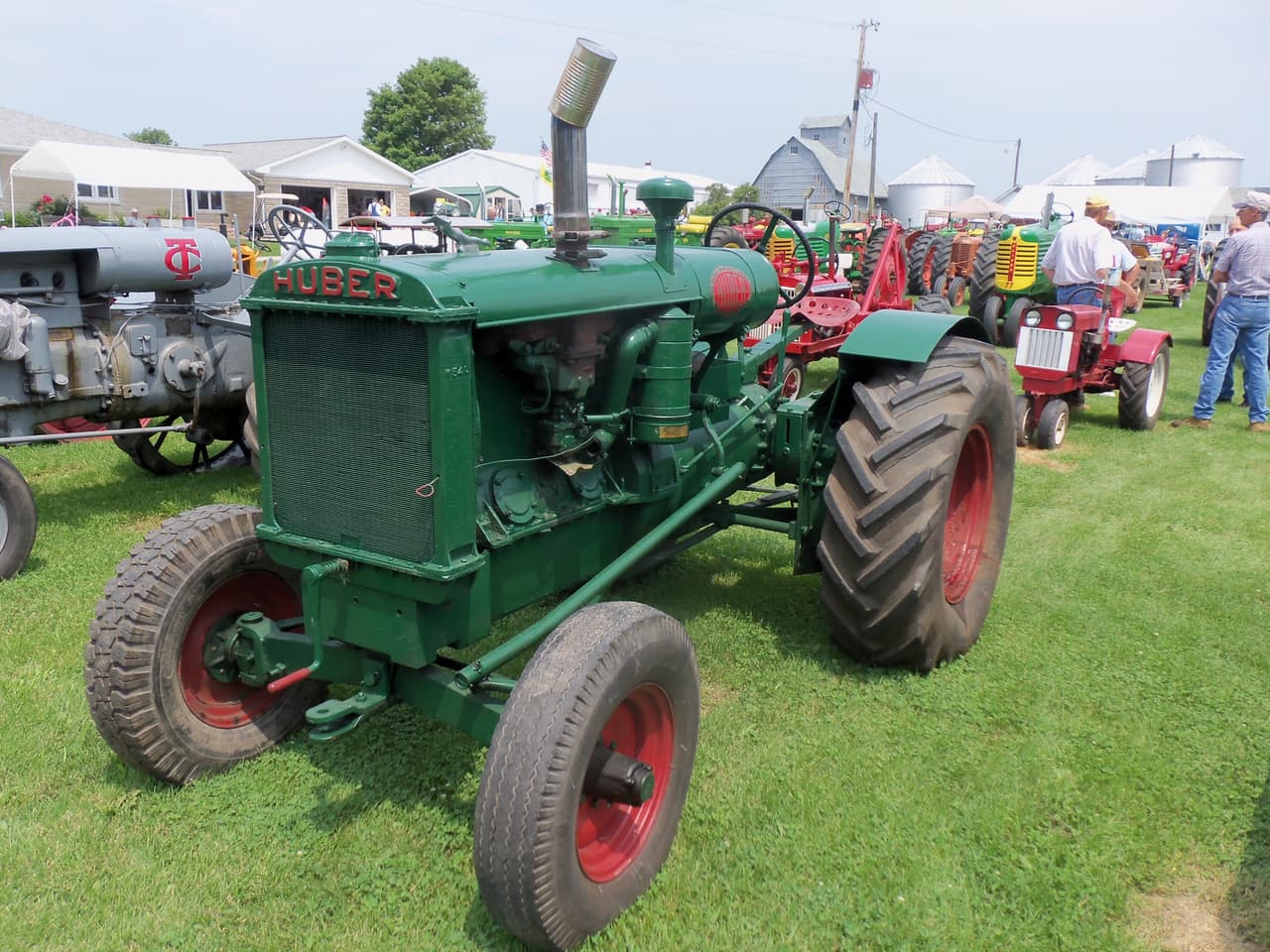

Huber SC

Last Updated: June 2024

Overview

The Huber SC is a row-crop tractor characterized by its 4x2 2WD chassis, manual steering, and gear transmission. Equipped with a Waukesha VIS gasoline engine, the tractor boasts a 4-cylinder, 281 cubic inch, liquid-cooled engine, ensuring reliable performance in various farming tasks. While specific horsepower and RPM data are not provided, the 4.125-inch bore and 5.25-inch stroke hint at its capability in terms of power and efficiency. This model's physical dimensions include a length of 127.625 inches and a width of 85 inches, with a hood height of 57 inches. Weighing 4000 pounds, the SC is substantial enough to maintain stability while performing its duties. Given these features, the Huber SC would likely serve as a competent tractor for row-crop farming operations.
Show more...

Key Specifications

Category: Row Crop

Transmission: Gear

Drive Type: 2WD

Operating Weight: 4000

Fuel Type: Gasoline

Huber SC vs. Similar Tractors

Operating Weight
Below Average
Greater than 19% of similar tractors.

Technical Specifications

Engine

Manufacturer
Waukesha
Model
VIS
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
281
Bore (in)
4.125
Stroke (in)
5.25
Rated RPM
-
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
127.625
Width (in)
85
Height (in)
57 (hood height)
Operating Weight (lb)
4000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
