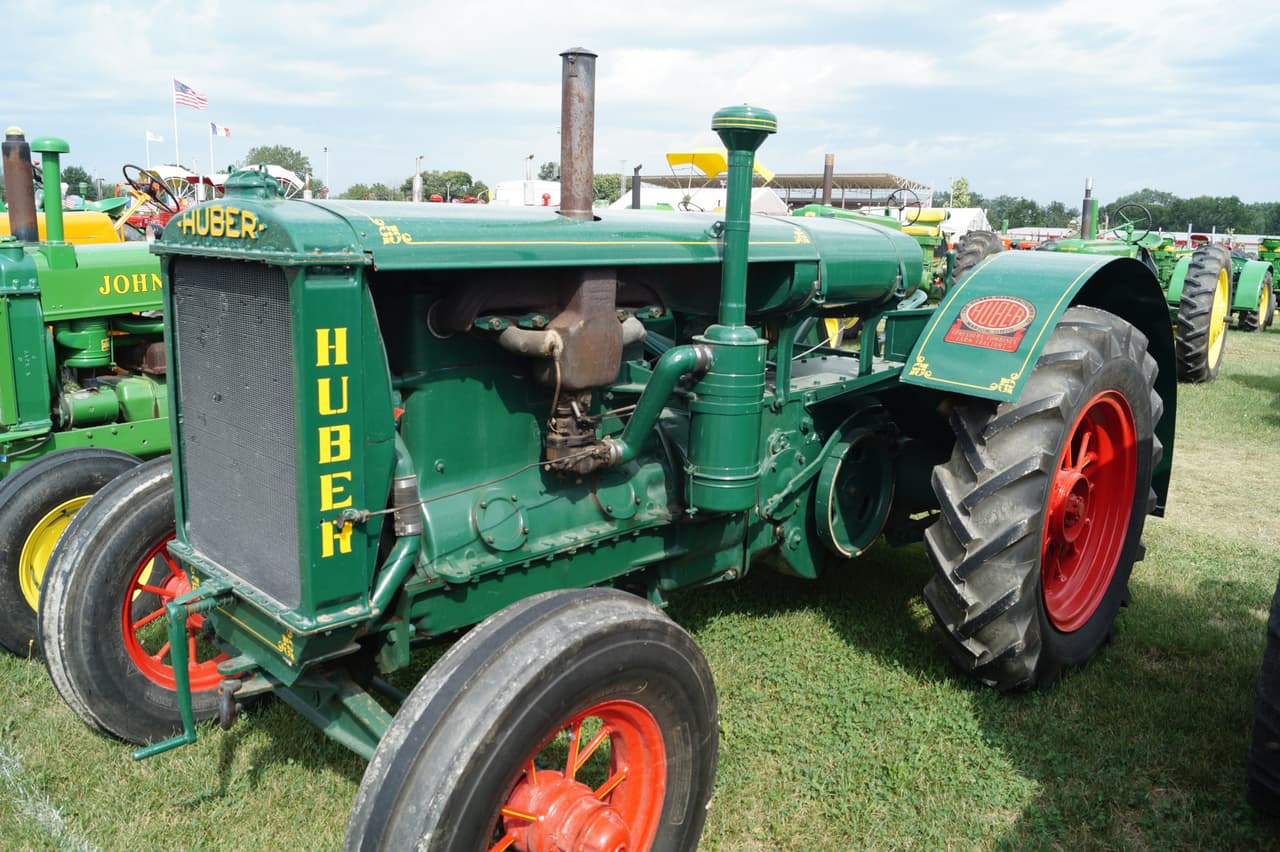

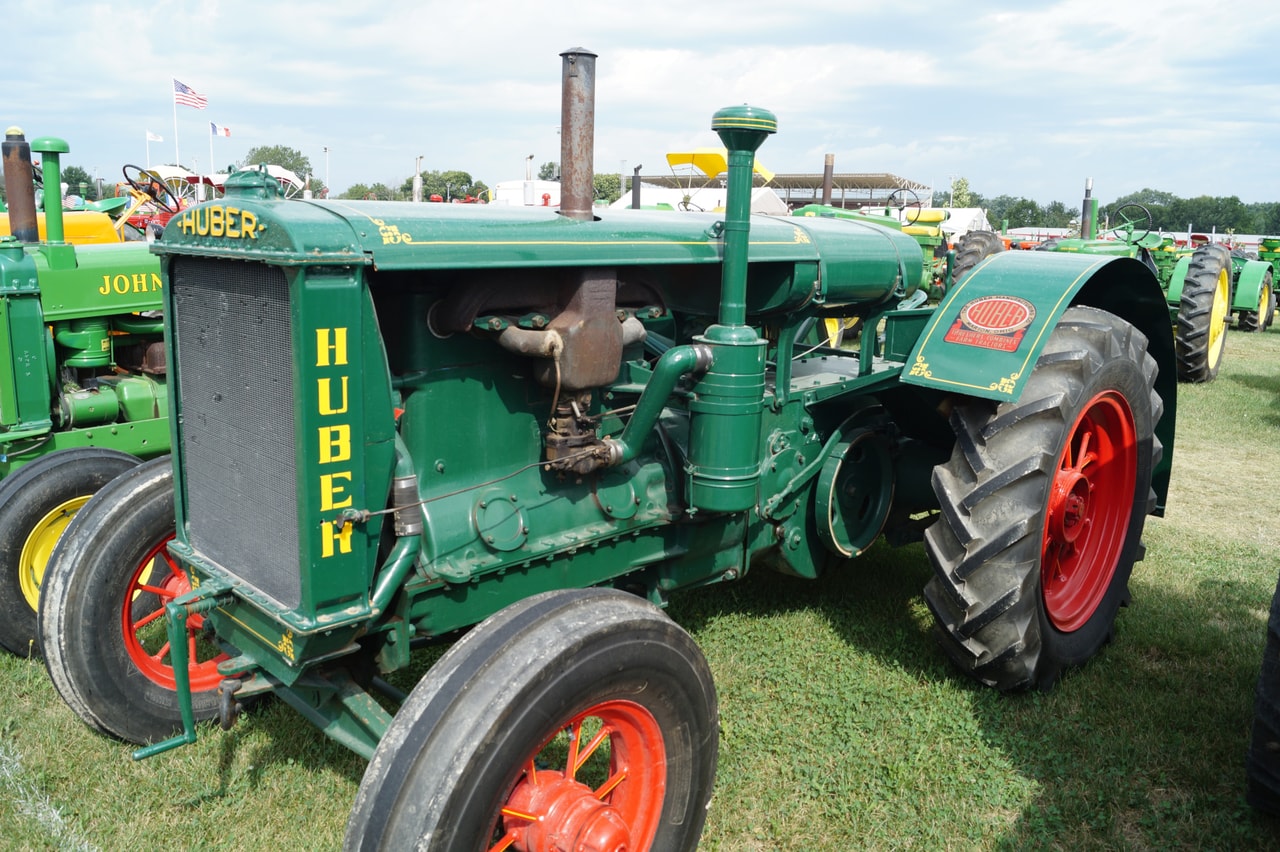

Huber K

Last Updated: June 2024

Overview

The Huber Model K is a standard-tread type tractor, which was one of the offerings that emphasized the shift towards more modern agricultural machinery. It comes with a 4x2 2WD chassis, and it's powered by a gasoline 4-cylinder Waukesha VK engine with a liquid-cooling system, ensuring adequate heat dissipation during extensive farming tasks. The engine has a displacement of 284 cubic inches, with a bore and stroke of 4.25 inches and 5.00 inches, respectively. This tractor's physical dimensions are significant, with a length of 123.5 inches, a width of 60 inches, and a height of 57.5 inches, which indicates a sturdy, stable platform for a variety of tasks. The tractor weighs 3700 pounds, giving it a substantial presence that aids in traction and performance in different field conditions. However, specifics about the tractor’s transmission gears, hydraulic system, PTO, and operating years, among other details, tend to lie in obscurity. It is also a manual steering and manually operated tractor, which suggests a more hands-on operational style compared to more modern automated tractors.
Show more...

Key Specifications

Category: Utility, Standard Tread

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3700

Fuel Type: Gasoline

Huber K vs. Similar Tractors

Operating Weight
Average
Greater than 32% of similar tractors.

Technical Specifications

Engine

Manufacturer
Waukesha
Model
VK
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Natural
Cylinders
4
Displacement (ci)
284
Bore (in)
4.25
Stroke (in)
5
Rated RPM
-
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
123.5
Width (in)
60
Height (in)
57.5
Operating Weight (lb)
3700

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
42
Rear Tire Width (in)
10
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
