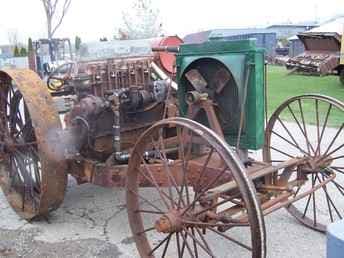

Huber 25-50 Super Four

Last Updated: June 2024

Overview

The Huber 25-50 Super Four is a standard-tread tractor recognized for its sturdy build and manual operation. With a 4x2 2WD chassis, it exhibits a classic configuration suitable for a variety of agricultural tasks. The steering is manually operated, catering to straightforwardness and durability. Featuring a simple 2-speed gear transmission, this tractor offers basic functionality with easy-to-understand mechanics, consisting of 2 forward gears and 1 reverse gear. The engine, manufactured by Stearns, is a gasoline-powered, liquid-cooled, 4-cylinder unit, with a substantial displacement of 618 cubic inches and a rated speed of 1100 RPM. The operating weight is a hefty 9760 pounds, implying a solid presence in the field. The Huber 25-50 Super Four sustains traditional steel wheel equipment, with front tire dimensions of 40 inches in diameter and 7 inches in width, and rear tire dimensions of 56 inches in diameter and 20 inches in width, which classically contributes to its iconic aesthetic and functionality.
Show more...

Key Specifications

Category: Utility, Standard Tread

Transmission: Gear

Drive Type: 2WD

Operating Weight: 9760

Fuel Type: Gasoline

Huber 25-50 Super Four vs. Similar Tractors

Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
Stearns
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
-
Cylinders
4
Displacement (ci)
618
Bore (in)
5.5
Stroke (in)
6.5
Rated RPM
1100
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
2
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
160
Width (in)
88
Height (in)
62 (hood height)
Operating Weight (lb)
9760

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
46
Front Tire Diameter (in)
40 (steel)
Front Tire Width (in)
7
Rear Tire Diameter (in)
56 (steel)
Rear Tire Width (in)
20
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
