Honda RT5000

Last Updated: June 2024

Overview

The Honda RT5000 is a multi-purpose garden tractor that was produced between 1986 and 1989. It is powered by a single-cylinder Honda GX340 engine that provides 11 horsepower and has a natural aspiration system. The tractor features a gear type transmission with 8 forward and 2 reverse gears and manual steering. Designed for versatility and being able to handle a variety of tasks, the RT5000 has a fuel capacity of 8.3 liters and comes with an open operator station that includes a two-post ROPS for safety. It also offers the ability to attach a front-mount Honda SB752A two-stage snowblower, enhancing its utility in snow removal.

Key Specifications

Category: Lawn and Garden

Power Output: 11

Transmission: Gear type

Operating Weight: 959

Fuel Type: Gasoline

Lift Capacity: 550 lbs

Image Gallery

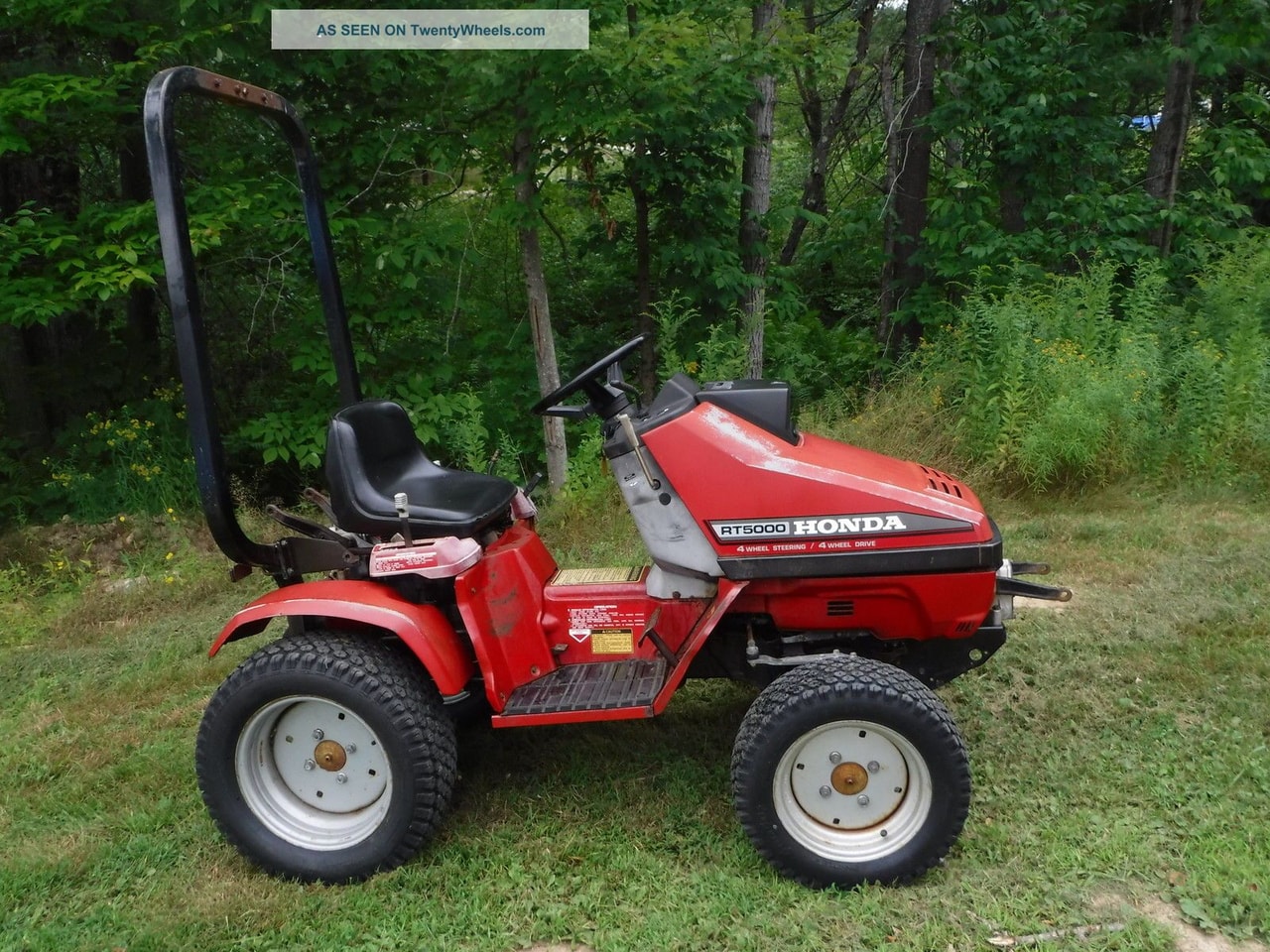

Honda RT5000 Tractor

Honda RT5000 vs. Similar Tractors

Power Output

Below Average

Greater than 15% of similar tractors.

Hitch Capacity

Below Average

Greater than 29% of similar tractors.

Operating Weight

Above Average

Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer: Honda
Model: GX340
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural aspirated
Cylinders: 1
Displacement (ci): 20.7
Bore (in): 3.19
Stroke (in): 2.52
Rated RPM: 3600
Power Output (hp): 11

Transmission

Type: Gear type
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 81.9
Width (in): 41.3
Height (in): 76.4
Operating Weight (lb): 959

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 2650
PTO Speed 2 (rpm): 2000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1989
Hitch Type: -
Hitch Category: Category 0
Hitch Position: -
Hitch Capacity (lb): 550 lbs
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: Mechanical shoe
Hydraulic System Type: -
