Honda HT3810

Last Updated: June 2024

Overview

The Honda HT3810 is a 2WD lawn tractor from the HT series. This tractor was manufactured by Honda from 1985 to 1989. It features a 0.4 L (24.8 cu·in) single-cylinder gasoline engine and a shaft-driven gear type transmission with 5 forward gears and 1 reverse gear. The tractor comes with an air-cooled engine model G400, producing 10.1 horsepower. It's designed with manual steering and an open operator station. The HT3810 is fitted with lawn/turf tires, 15×6.00-6 in the front and 18×8.50-8 at the rear, and has no cabin, which means it's intended for good weather usage or with appropriate personal protective equipment when the weather is less favorable.

Key Specifications

Category: Lawn and Garden

Power Output: 10.1

Transmission: Shaft-driven gear

Drive Type: 2WD

Operating Weight: 545

Fuel Type: Gasoline

Image Gallery

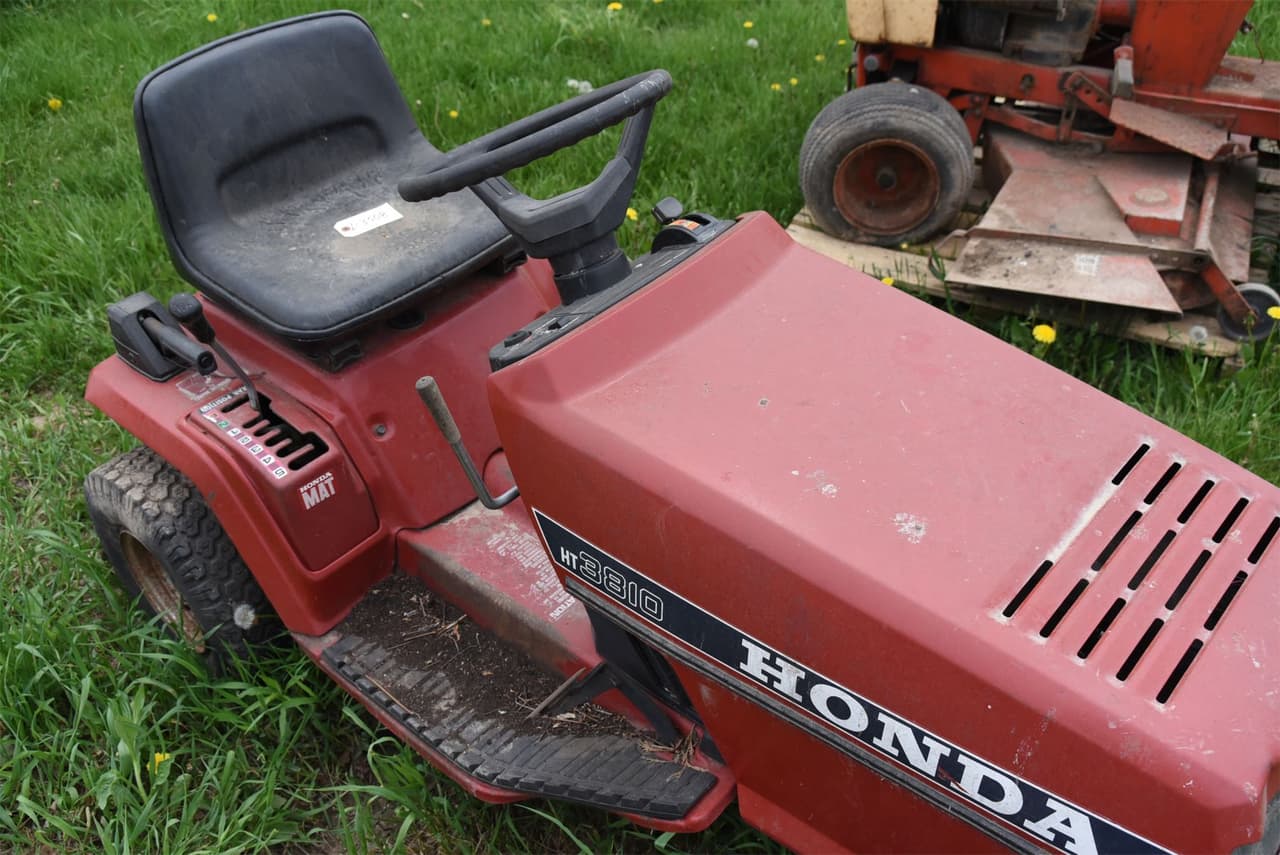

Honda HT3810 Tractor

Honda HT3810 vs. Similar Tractors

Power Output

Below Average

Greater than 12% of similar tractors.

Operating Weight

Average

Greater than 38% of similar tractors.

Technical Specifications

Engine

Manufacturer: Honda
Model: G400
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 1
Displacement (ci): 24.8
Bore (in): 3.39
Stroke (in): 2.8
Rated RPM: -
Power Output (hp): 10.1

Transmission

Type: Shaft-driven gear
Forward Gears: 5
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 68.9
Width (in): 49.2
Height (in): 40.9
Operating Weight (lb): 545

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): 15
Front Tire Width (in): 6
Rear Tire Diameter (in): 18
Rear Tire Width (in): 8.5
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 1989
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
