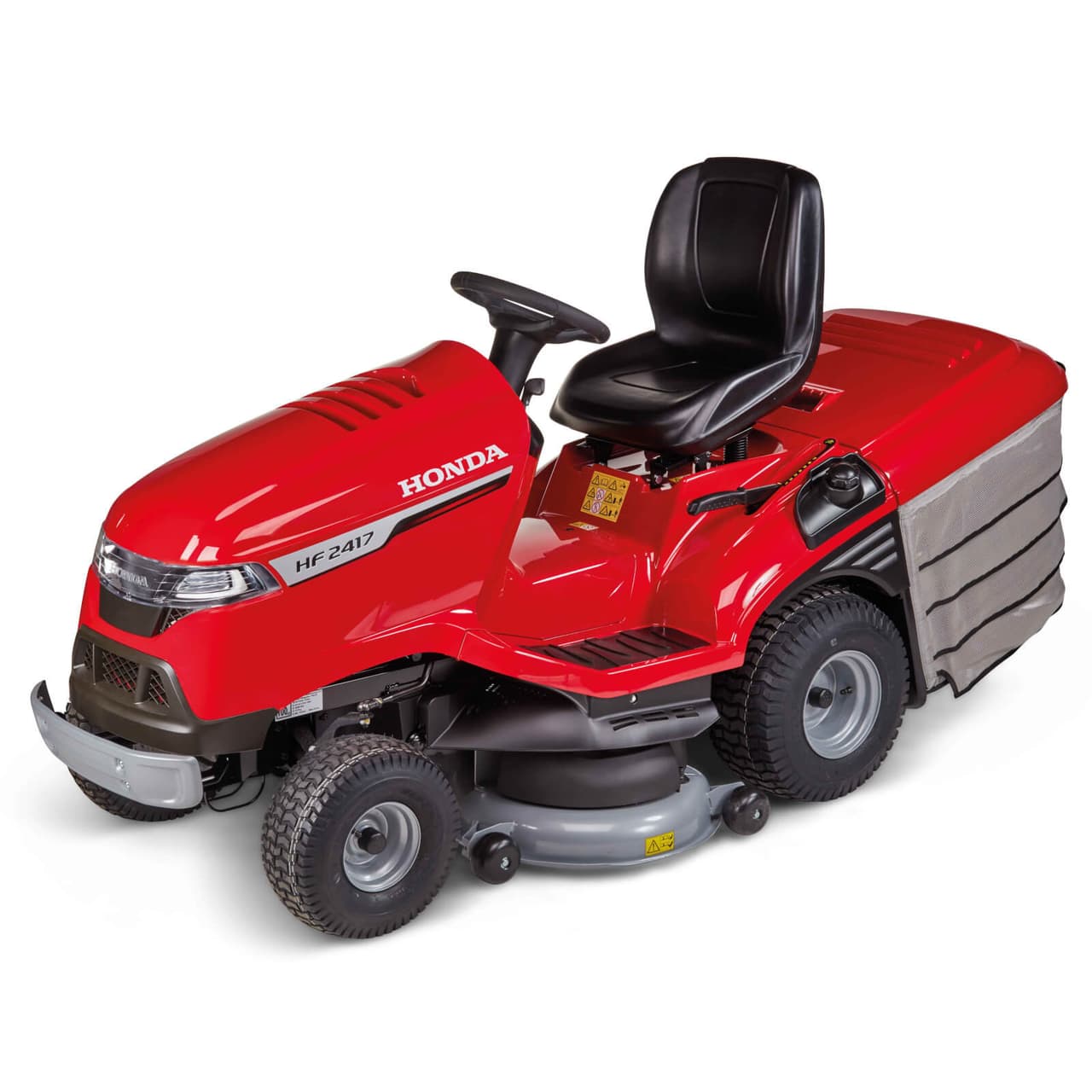

Honda HF2417

Last Updated: June 2024

Overview

The Honda HF2417 is a lawn tractor produced from 2004 to 2021. It features a Honda GCV530 engine, an air-cooled, two-cylinder gasoline engine with a displacement of 32.3 cubic inches, producing 17 horsepower between 2004 and 2020, with a slight decrease to 15.2 horsepower for models made from 2020 to 2021. With its belt-driven hydrostatic transmission, it offers infinite forward and reverse gears, allowing for easy speed adjustments while covering varied ground. The tractor operates on a 4x2 2WD chassis and is equipped with manual steering and an open operator station for ease of access and use.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 17.0 (2004-2020) / 15.2 (2020-2021)

Transmission: Belt-driven hydrostatic

Drive Type: 2WD

Operating Weight: 507

Fuel Type: Gasoline

Image Gallery

Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor Honda HF2417 Tractor

Honda HF2417 vs. Similar Tractors

Operating Weight
Below Average
Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer
Honda
Model
GCV530
Cooling Type
Air-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
32.3
Bore (in)
3.03
Stroke (in)
2.24
Rated RPM
2800
Power Output (hp)
17.0 (2004-2020) / 15.2 (2020-2021)

Transmission

Type
Belt-driven hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
73.2
Width (in)
-
Height (in)
44.1
Operating Weight (lb)
507

Power Take-Off (PTO)

PTO Type
Middle Independent with electromagnetic clutch
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2021
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
