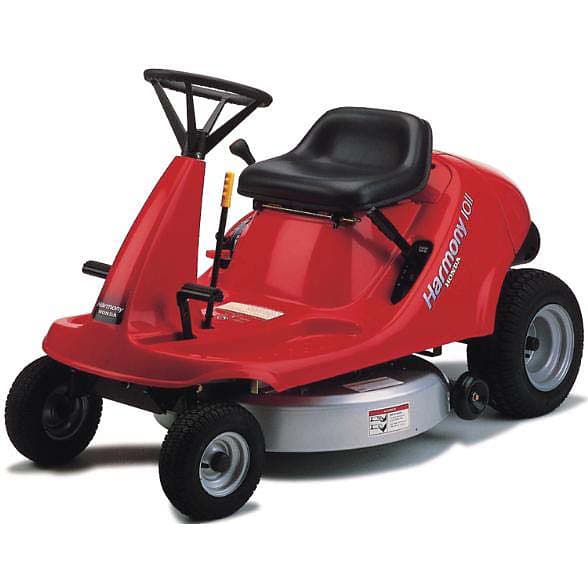

Honda Harmony H1011

Last Updated: June 2024

Overview

The Honda Harmony 1011 is a versatile riding lawn mower powered by the reliable Honda GXV340 K1 engine, a single-cylinder, four-stroke, air-cooled engine with a displacement of 337 cc, providing a power output of 11.0 HP at 3600 rpm. It offers a 30-inch mowing deck with sidewise adjustable height settings ranging from 1 to 3.5 inches for various lawn conditions. The Harmony 1011 comes with a gear type transmission, allowing five forward speeds and a single reverse speed. Additionally, it features a sealed hydrostatic transmission with variable speeds, enhancing the mower's maneuverability and ease of use for different terrains. While the detailed steering system and chassis type are not specified, one can assume a standard riding mower layout with a steering wheel and rear-wheel drive configuration. Note that some specifications, such as hitch type, PTO speed, and hydraulic system type, could not be determined from the data provided.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 11

Transmission: Gear type transmission & Hydrostatic transmission

Operating Weight: 330.0 (R version) / 353.0 (S version) / 350.0 (H version)

Fuel Type: Gasoline

Honda Harmony H1011 vs. Similar Tractors

Power Output
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Honda
Model
GXV340 K1
Cooling Type
Air-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
1
Displacement (ci)
20.6
Bore (in)
3.23
Stroke (in)
2.5
Rated RPM
3600
Power Output (hp)
11

Transmission

Type
Gear type transmission & Hydrostatic transmission
Forward Gears
5
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
59.8
Width (in)
32.5
Height (in)
39.6
Operating Weight (lb)
330.0 (R version) / 353.0 (S version) / 350.0 (H version)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Recoil
Brake Type
Mechanical Arm
Hydraulic System Type
-
