Honda HA4120

Last Updated: June 2024

Overview

The Honda HA4120 is a lawn tractor designed for residential use, featuring a 0.6 L (37.5 cu·in) two-cylinder gasoline engine and a Tuff Torq K61 hydrostatic transmission. With its air-cooled Honda GXV610 engine, it delivers a power output of 20 HP at 3600 RPM. The tractor provides ease of use with an open operator station and electric starter, coupled with a fuel tank capacity of 9.5 liters. This model was produced from 1998 to 2001 and is equipped with a 48-inch mid-mount mower deck, which indicates its primary use in lawn care and maintenance. The 4x2 2WD chassis along with the lawn/turf tires ensure smooth operation over grass surfaces. Additional features include infinite forward and reverse gears, allowing for precision in mowing tasks.

Key Specifications

Category: Lawn and Garden

Power Output: 20

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 558

Fuel Type: Gasoline

Image Gallery

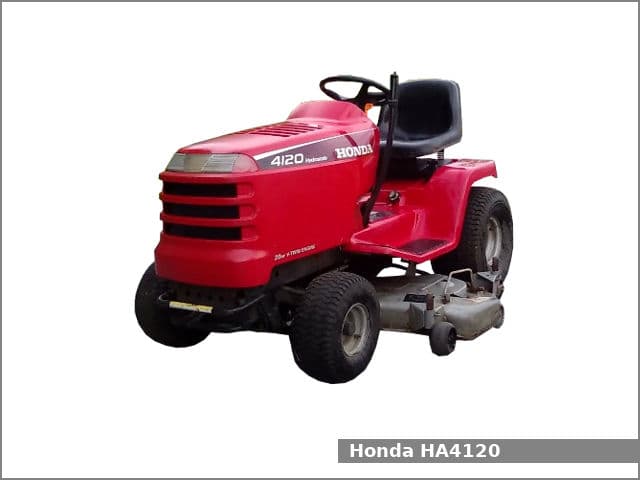

Honda HA4120 Tractor

Honda HA4120 vs. Similar Tractors

Power Output

Average

Greater than 69% of similar tractors.

Operating Weight

Average

Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer: Honda
Model: GXV610
Cooling Type: Air-cooled
Cylinder Orientation: V-twin
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Natural aspirated
Cylinders: 2
Displacement (ci): 37.5
Bore (in): 3.03
Stroke (in): 2.6
Rated RPM: 3600
Power Output (hp): 20

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 68.1
Width (in): 59.1
Height (in): 40.6
Operating Weight (lb): 558

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 6
Rear Tire Diameter (in): -
Rear Tire Width (in): 10
Front/Rear Rim Diameter (in): -
Tire Type: Lawn/turf
Manufacture - End Year: 2001
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
