Honda H3013H

Last Updated: June 2024

Overview

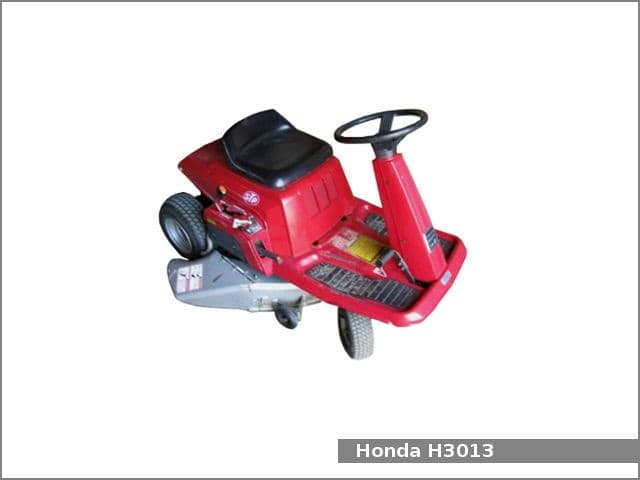

The Honda H3013H is a riding lawn mower powered by a Honda GXV390 engine. It comes equipped with a hydrostatic transmission, offering ease of use with variable speeds. The engine is an air-cooled single-cylinder four-stroke gasoline engine with a vertical PTO shaft, OHV (Overhead Valve) design, and a displacement of 389 cc (23.7 cu-in). The cutting deck is 970 mm (38 in.) wide, with an adjustable cutting height between 25 mm (1 in.) and 90 mm (3.5 in.). With a compact yet robust design, the mower's dimensions are 1550 mm (61.0 in) in length, 1260 mm (49.6 in) in width, and a height of 1000 mm (39.4 in), weighing in at 192 kg (423 lbs). This model is designed to deliver reliable mowing performance with the added convenience of an electric starter.
Show more...

Key Specifications

Category: Lawn and Garden

Power Output: 13

Transmission: Hydrostatic

Operating Weight: 423

Fuel Type: Unleaded gasoline

Honda H3013H vs. Similar Tractors

Power Output
Below Average
Greater than 27% of similar tractors.
Operating Weight
Below Average
Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer
Honda
Model
GXV390
Cooling Type
Air-cooled
Cylinder Orientation
Vertical
Valve Configuration
OHV
Fuel Type
Unleaded gasoline
Induction Type
Natural
Cylinders
1
Displacement (ci)
23.7
Bore (in)
3.46
Stroke (in)
2.5
Rated RPM
3600
Power Output (hp)
13

Transmission

Type
Hydrostatic
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
61
Width (in)
49.6
Height (in)
39.4
Operating Weight (lb)
423

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
