Holder A760

Last Updated: June 2024

Overview

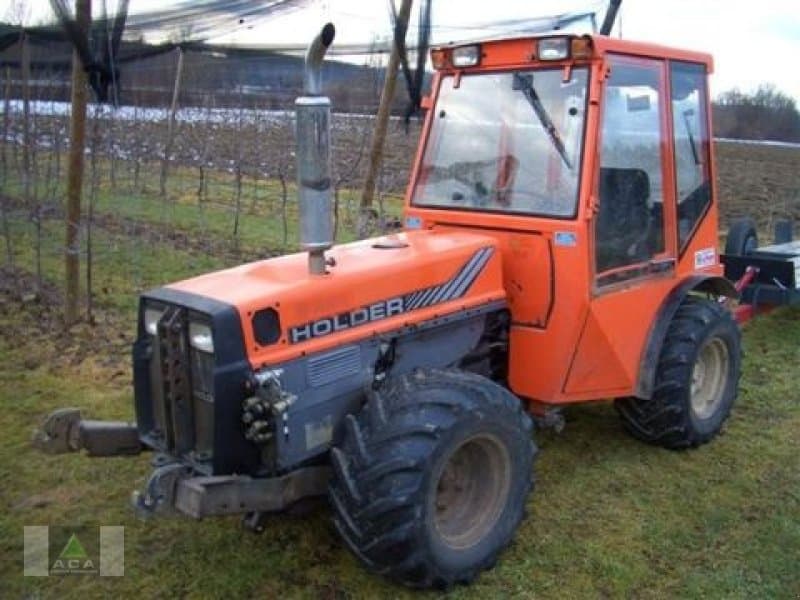

The Holder A760 is a robust, air-cooled, turbocharged diesel tractor. It boasts a Deutz engine with a displacement of 166.7 cubic inches, providing a solid power output of 60 horsepower at 1600 rpm. Fitted with a synchronized 12-speed transmission, it has 12 forward and 4 reverse gears that facilitate various working conditions and tasks. The tractor features hydrostatic power steering, which simplifies maneuvers and reduces operator fatigue, making it suitable for a wide range of agricultural and utility work. As an articulated 4WD machine, the A760 offers increased traction and stability over different terrains. Moreover, the tractor's engine is known for its torque, delivering 136.5 lb-ft, which ensures reliable performance and efficiency during demanding operations.
Show more...

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 60

Transmission: Synchronized

Drive Type: 4WD

Fuel Type: Diesel

Holder A760 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
BF4L 1011
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
166.7
Bore (in)
3.6
Stroke (in)
4.1
Rated RPM
1600
Power Output (hp)
60

Transmission

Type
Synchronized
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
