Holder A5.58

Last Updated: June 2024

Overview

The Holder A5.58 is a compact, four-wheel drive (4WD) tractor renowned for its articulated chassis and hydrostatic power steering, making it highly maneuverable and suitable for a variety of tasks. With an air-cooled, turbocharged Deutz diesel engine, it provides a solid 60 horsepower output and operates at a rated RPM of 2500. The engine displacement is 125.1 ci, complemented by a bore and stroke of 3.583 x 4.134 inches. This versatile workhorse comes fitted with a synchronized 12-speed transmission for ample gear selection in both forward and reverse directions. Notably, its operating weight is 2750 lbs, with the ability to lift a maximum of 5952 lbs, ensuring substantial load handling capability. This tractor would be well-suited for a range of agricultural applications where power and agility are necessary.

Key Specifications

Category: Utility, Four-Wheel Drive

Power Output: 60

Transmission: Synchronized

Drive Type: 4WD

Operating Weight: 2750

Fuel Type: Diesel

Image Gallery

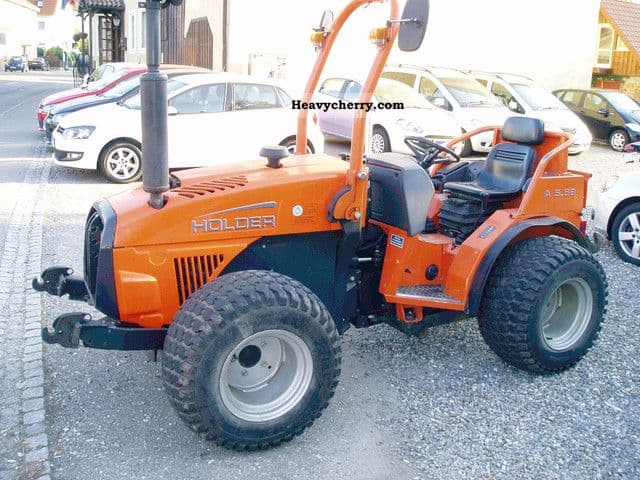

Holder A5.58 Tractor

Holder A5.58 vs. Similar Tractors

Power Output

Average

Greater than 58% of similar tractors.

Hitch Capacity

Above Average

Greater than 80% of similar tractors.

Operating Weight

Below Average

Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer: Deutz
Model: 1011
Cooling Type: Air-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 3
Displacement (ci): 125.1
Bore (in): 3.583
Stroke (in): 4.134
Rated RPM: 2500
Power Output (hp): 60

Transmission

Type: Synchronized
Forward Gears: 12
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 2750

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): 5952
Operator Station Type: -
Starter Type: Electric starter (assumed from "Engine - Starter volts: 12")
Brake Type: -
Hydraulic System Type: Open center
