Holder A45 Cultitrac

Last Updated: September 2024

Overview

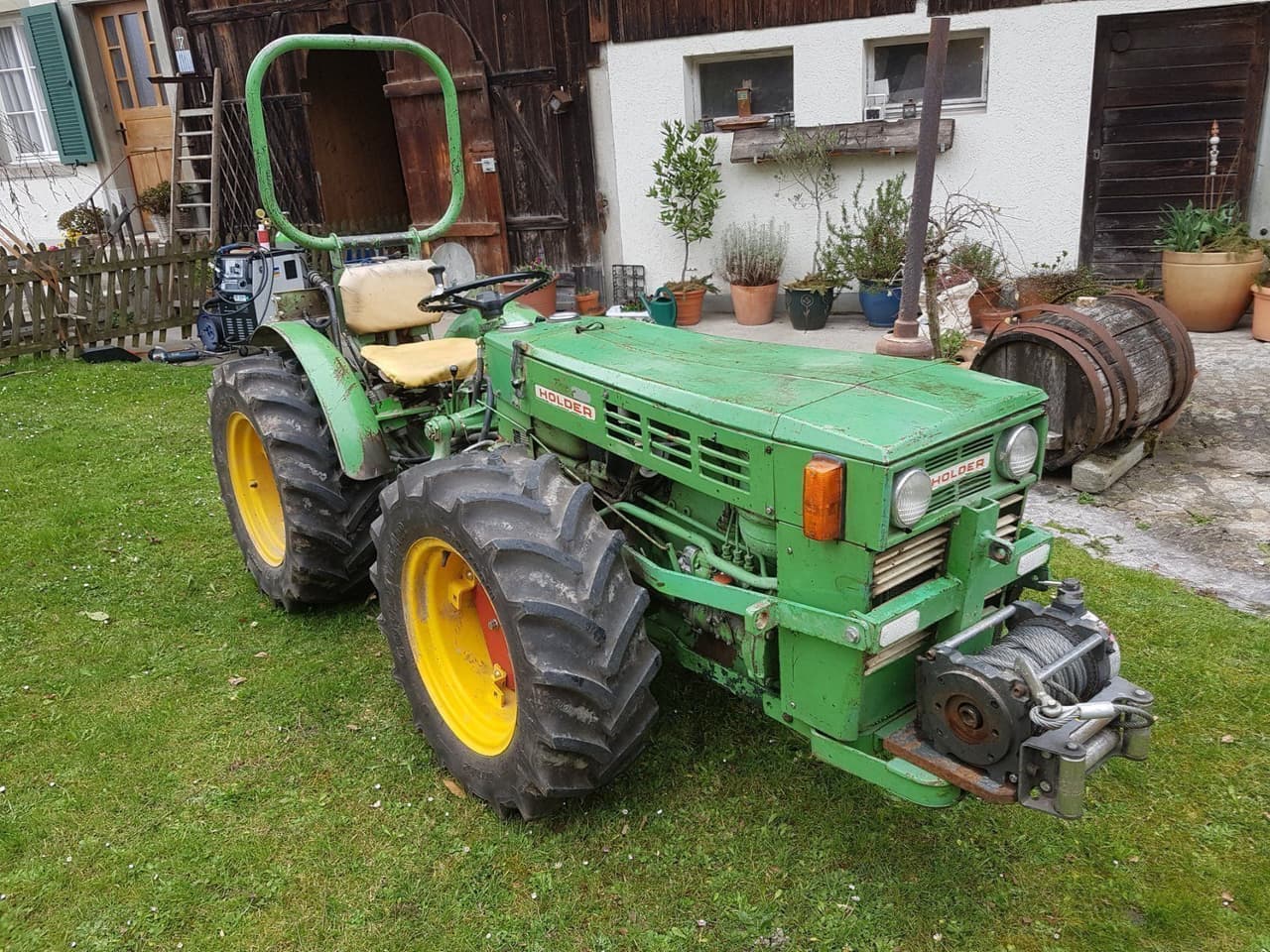

The Holder A45 Cultitrac is a compact and versatile 4x4 tractor designed for various farming tasks. It features an articulated chassis, which means it can turn tightly in small spaces. The tractor is powered by a Holder-made diesel engine with 3 cylinders and 40 horsepower. This liquid-cooled engine runs at 2300 RPM, providing reliable power for everyday farm work.

The A45 Cultitrac has a manual transmission with 6 forward gears and 4 reverse gears, giving the driver good control over speed and power. It's equipped with agricultural tires on both front and rear, measuring 18 inches in diameter and 7.5 inches wide. The tractor is 112 inches long and 34 inches wide, making it easy to maneuver in tight spots. Weighing 2358 pounds, it's sturdy enough for tough jobs but not too heavy for the field. The tractor has a Category I hitch, which is common for smaller tractors, and uses a 12-volt electrical system with an electric starter for easy operation.
Show more...

Key Specifications

Power Output: 40 hp (29.8 kW)

Transmission: Manual

Drive Type: 4WD

Operating Weight: 2358 lb (1070 kg)

Fuel Type: Diesel

Holder A45 Cultitrac vs. Similar Tractors

Power Output

The Power Output for the Holder A45 Cultitrac is Average. It is greater than 32% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Holder A45 Cultitrac is Below Average. It is greater than 16% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Holder A45 Cultitrac is Below Average. It is greater than 28% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Holder A45 Cultitrac is Average. It is greater than 51% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Holder
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
3
Displacement
123 ci (2.0 L)
Rated RPM
2300
Power Output
40 hp (29.8 kW)

Transmission

Type
Manual
Forward Gears
6
Reverse Gears
4

Drivetrain

Chassis
4x4 articulated
Drive Type
4WD
