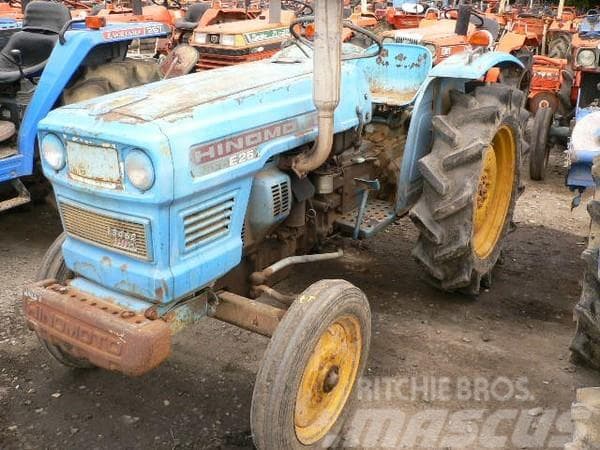

Hinomoto E25

Last Updated: June 2024

Overview

The Hinomoto E25 is a utility tractor designed for a variety of tasks. With a 25 horsepower liquid-cooled two-cylinder diesel engine provided by Toyosha, this tractor offers solid performance for its size. It features a manual transmission with a substantial number of gears, 12 forward and 3 reverse, to give operators the versatility they need whether they are tilling fields or carrying loads. The tractor's chassis is a 4x2, which indicates a two-wheel drive configuration suitable for general-purpose work. It operates at a rated RPM of 2500 and offers an appropriate balance of efficiency and power for small to medium-sized farming operations. The 4.00-15 front and 9.5/9-24 rear agricultural tires provide traction in a variety of conditions, while its modest size, with a length of 101 inches and width of 48.4 inches, ensures it is maneuverable in tighter spaces. Additionally, the tractor affords an operating weight of 1896 lbs, which makes it light enough to work on varying types of terrain without compacting the soil excessively.
Show more...

Key Specifications

Category: Utility

Power Output: 25

Transmission: Manual

Drive Type: 2WD

Operating Weight: 1896

Fuel Type: Diesel

Hinomoto E25 vs. Similar Tractors

Power Output
Below Average
Greater than 18% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Toyosha
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
2
Displacement (ci)
82.1
Bore (in)
3.74
Stroke (in)
3.74
Rated RPM
2500
Power Output (hp)
25

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
101
Width (in)
48.4
Height (in)
76 (Height to the top of the exhaust)
Operating Weight (lb)
1896

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
4
Rear Tire Diameter (in)
-
Rear Tire Width (in)
9.5
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open (assuming from the height specification provided by the steering wheel and exhaust)
Starter Type
Electric (assuming from "Starter volts")
Brake Type
-
Hydraulic System Type
-
